Jumpers
 PHYTEC Messtechnik GmbH 2013 L-773e_2
23
3 Jumpers
For configuration purposes, the phyFLEX-i.MX 6 has several solder
jumpers, some of which have been installed prior to delivery. Figure 5
illustrates the numbering of the solder jumper pads, while Figure 6
and Figure 7 indicate the location of the solder jumpers on the board.
Table 9 below provides a functional summary of the solder jumpers
which can be changed to adapt the phyFLEX-i.MX 6 to your needs. It
shows their default positions, and possible alternative positions and
functions. A detailed description of each solder jumper can be found
in the applicable chapter listed in the table.
Note:
Jumpers not listed should not be changed as they are installed with
regard to the configuration of the phyFLEX-i.MX 6.

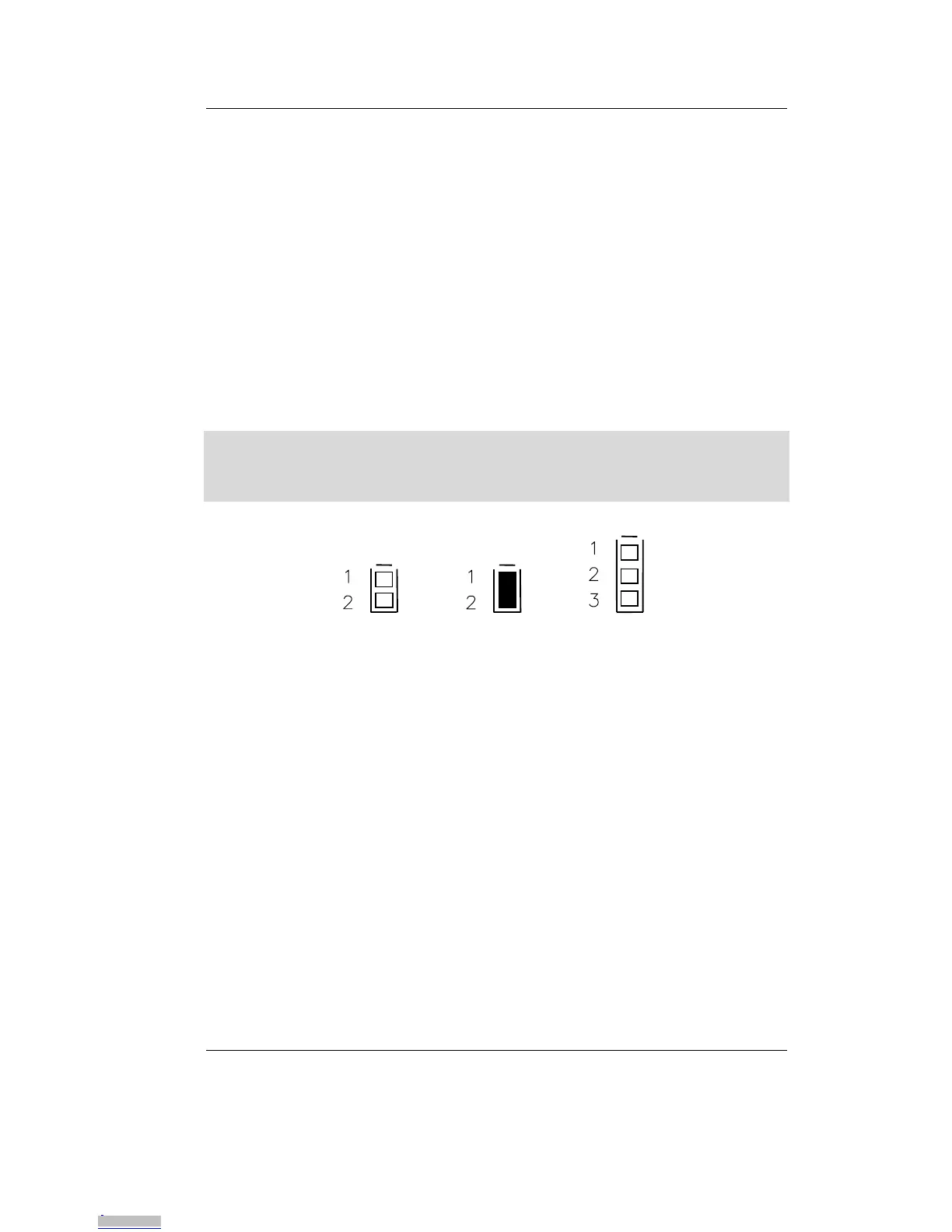

Figure 5: Typical Jumper Pad Numbering Scheme
If manual jumper modification is required please ensure that the board
as well as surrounding components and sockets remain undamaged
while de-soldering. Overheating the board can cause the solder pads to
loosen, rendering the module inoperable. Carefully heat neighboring
connections in pairs. After a few alternations, components can be
removed with the solder-iron tip. Alternatively, a hot air gun can be
used to heat and loosen the bonds.
e.g.: J5e.g.: J3
e.g.: J3
closed
