• CONNECT:The CONNECT device must be connected between
the router for Internet access and an Internet-capable PC. The
device then recognizes the PC's parameters and uses them.
Please make sure that the PC is overIPv4 parameters (IP address,
subnet mask, gateway address), otherwise there is no connection
to the Internet.
• GATEWAY:The CONNECT device is connected to the router for
Internet access. The device has its own IP address that is used to
establish the Internet connection.
• LTE:The CONNECT device establishes the Internet connection via
the integrated LTE modem(only available on CONNECT devices
with integrated LTE modem).
Depending on the type of connection you select, you then have to use
the router interface and PC interface settings to specify which interface
the gateway or proxy server and the PC are connected to.

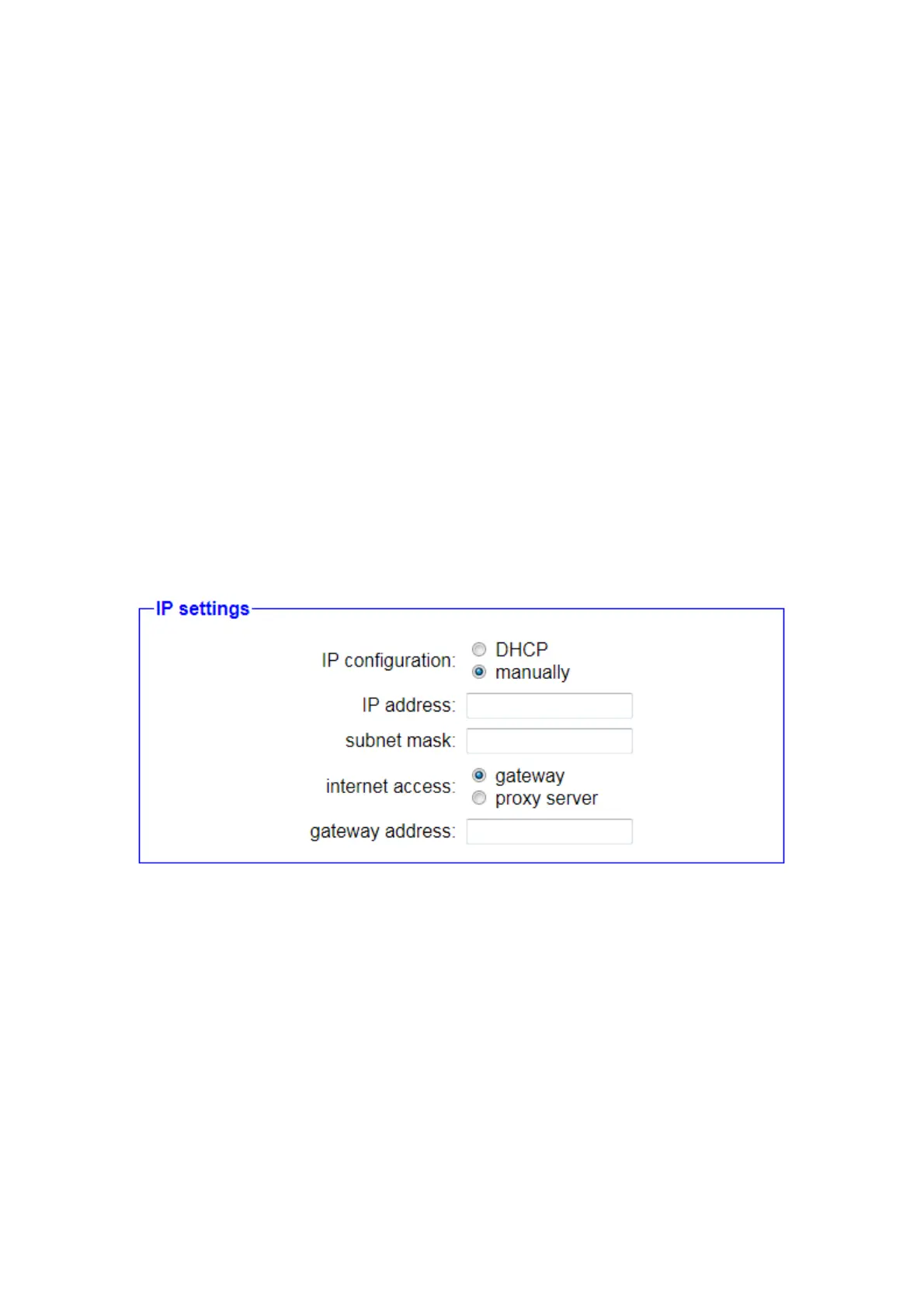

If you have selected GATEWAY as the connection type, a field for
manual configuration of the IP parameters appears. There you can first
choose whether the device should obtain the configuration from a server
via DHCP or whether the parameters should be set manually. When
configuring manually, you then have to enter the IP address and, if
necessary, the subnet mask. Next, you need to choose how the device
will gain access to the Internet:
• Gateway:The device communicates directly with the Internet via a
router/gateway. Here it is necessary to specify the IP address of
the gateway.
Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13 Page 14
