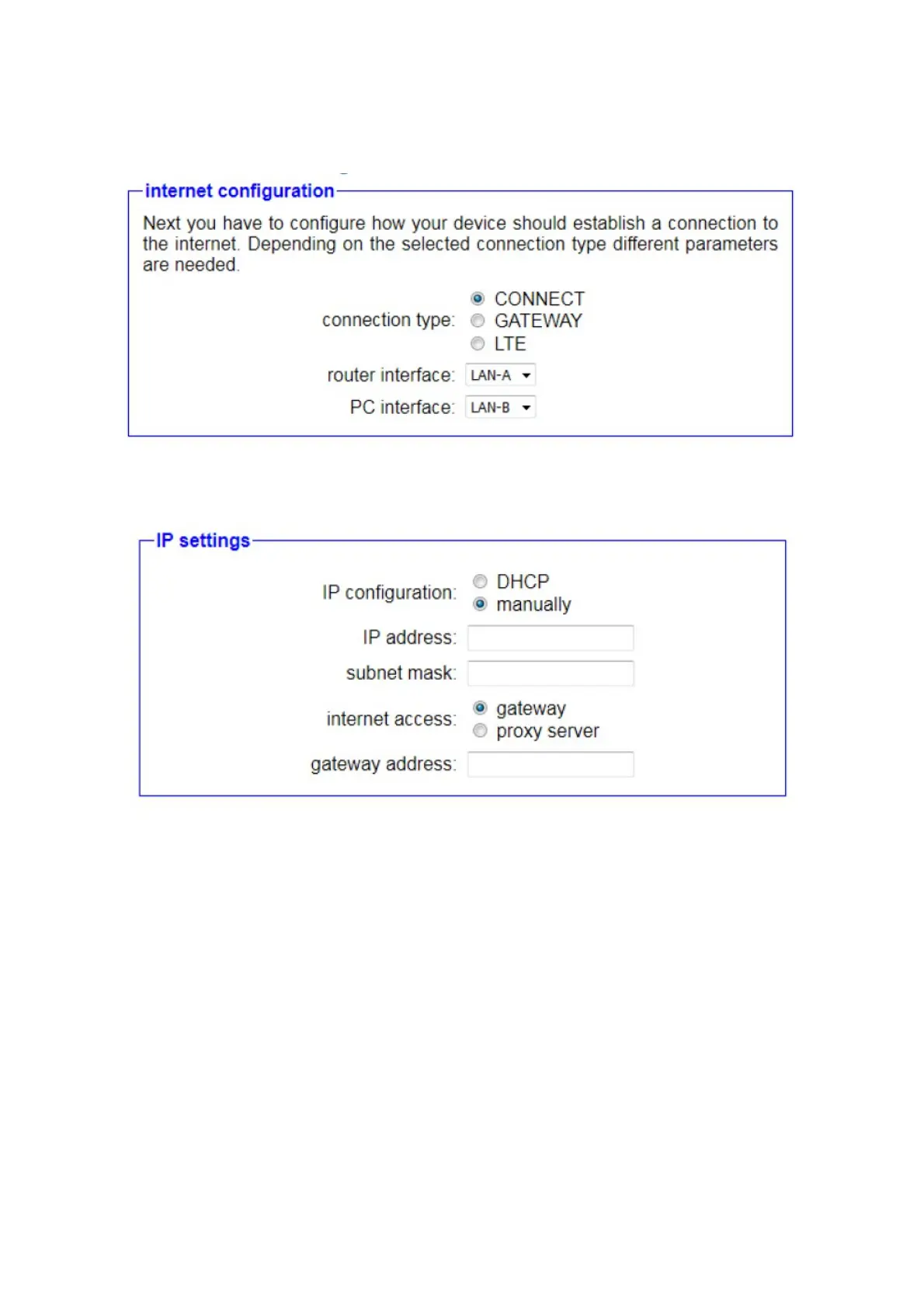

Next, you need to determine the use of the interfaces and the
parameters for the company network:
Connection type: GATEWAY
Router interface: LAN-A / WAN (interface to the company network)
IP configuration: Manually
IP address: IP address of the device in the company network
(Example: 10.10.12.100)
Subnet mask: 255.0.0.0(entered automatically)
Internet access: Gateway
Gateway address: IP address of the gateway in the company
network (Example: 10.10.12.1)
Then click Next".
Page 33 Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13
