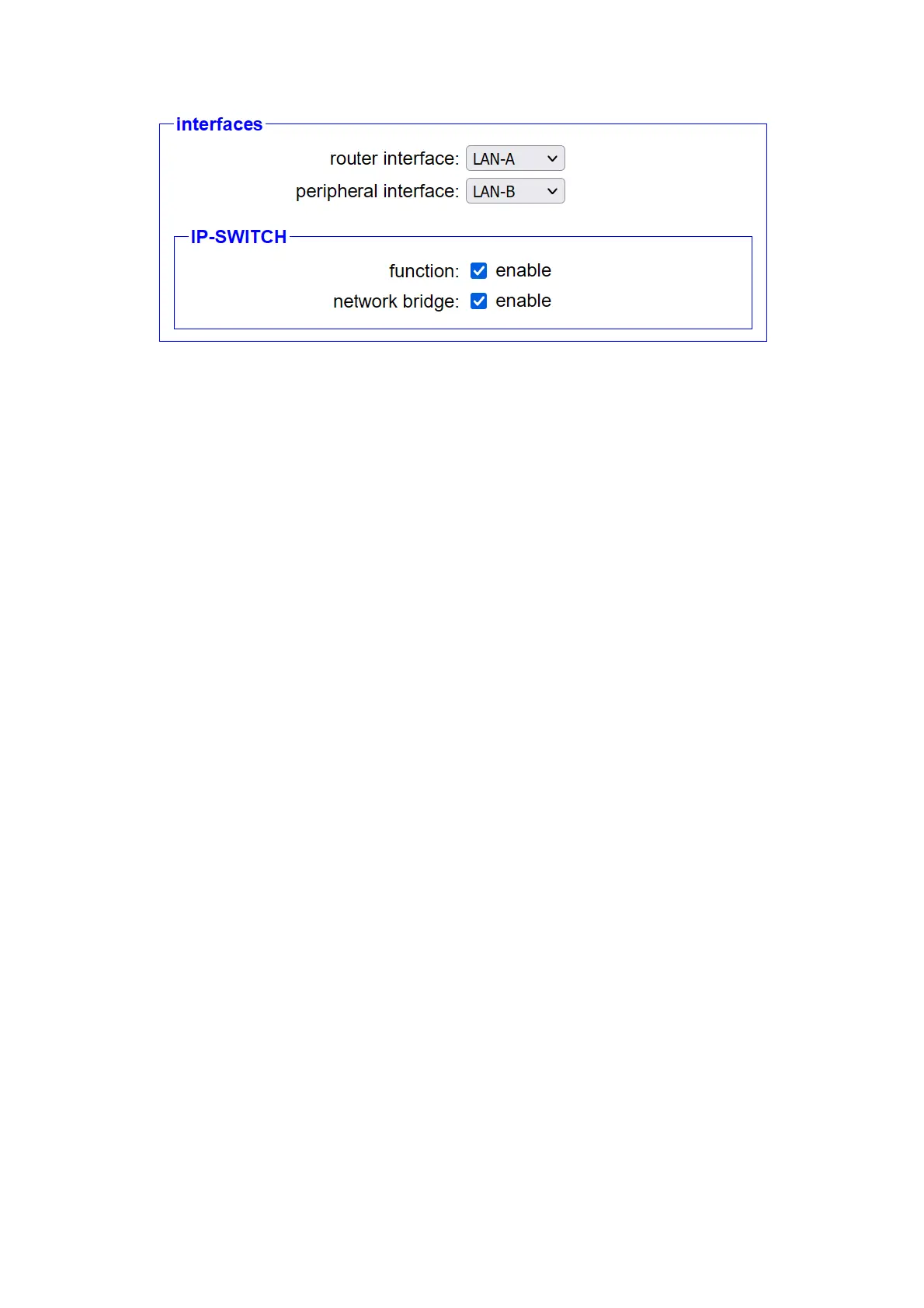

If the IP switch option is installed in your device, first specify which

interfaces should be used in the “Interfaces” block:

Router interface: The interface on which the devices come

from the network of the peripheral interface

reached with a converted IP address

can be.

Peripheral interface: The interface on which the devices used by

the Network reached the router interface

can be connected.

Furthermore, you can specify general settings for the option in the sub-

block “IP-SWITCH”:

Function: Specifies whether the IP switch option is

available Converting IP addresses is used

shall be.

Network bridge: Specifies whether between the router and

Peripheral interface a network Bridge should

be active. By activation this setting will

contain all packages for which does not

implement the IP address possible or

configured is passed on.

Important:

If the IP switch option is used, the router and peripheral interfaces must

be different.

Page 57 Handbook CONNECT / CONNECT-II / CONNECT-CONTROL V1.13
