PI E-727 User Manual

User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 107 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

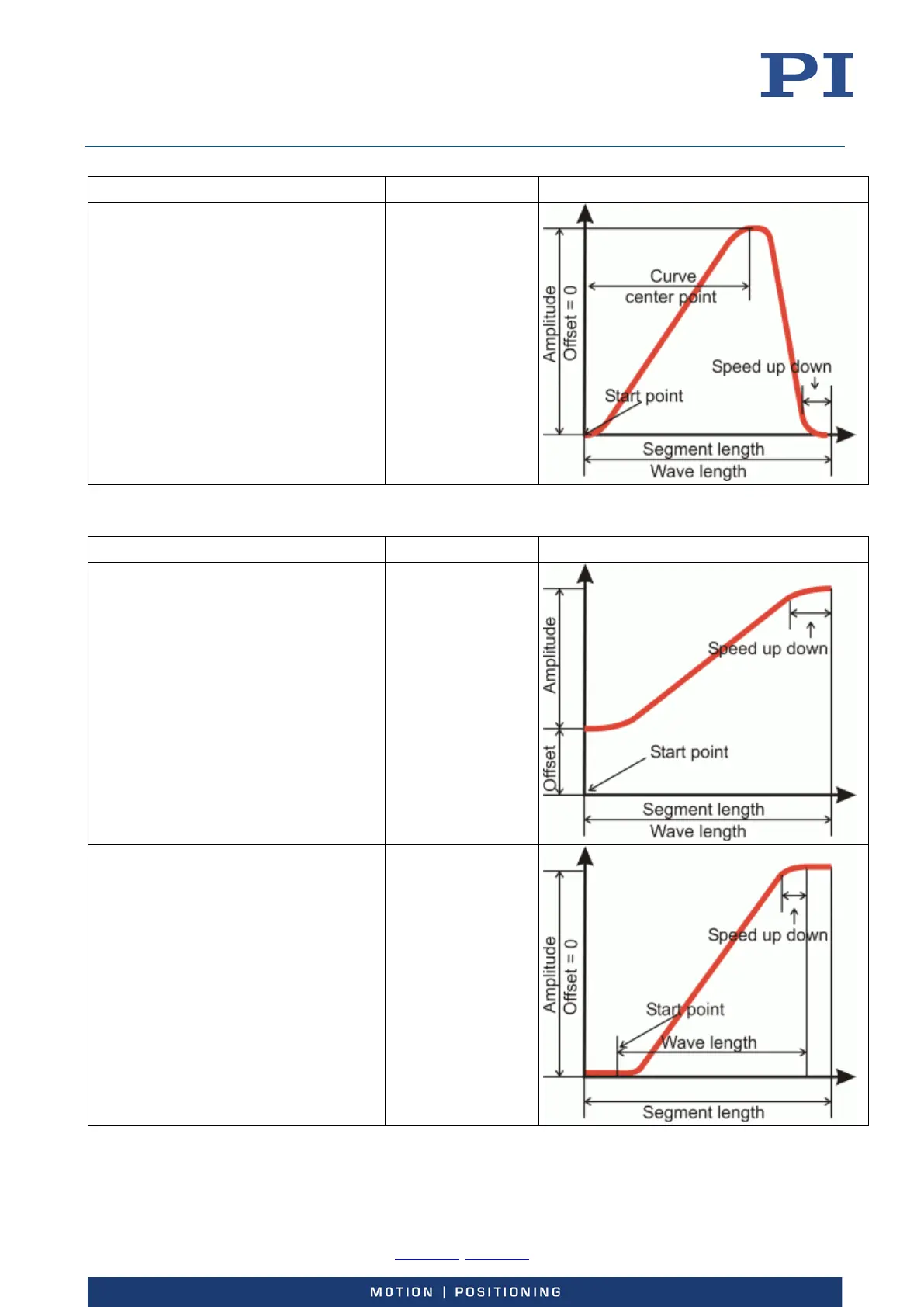

WAV command Comments Waveform Segment
WAV 5 & RAMP 3000 35 0 3000 0 200 2250
<WaveTableID> = 5
<AppendWave> = &
<WaveType> = RAMP
<SegLength> = 3000
<Amp> = 35
<Offset> = 0
<WaveLength> = 3000
<StartPoint> = 0
<SpeedUpDown> = 200
<CurveCenterPoint> = 2250
The defined segment
will be appended to
the existing wave
table contents,
asymmetric curve
Single Scan Line Curves
WAV command Comments Waveform Segment
WAV 1 X LIN 1500 30 15 1500 0 370
<WaveTableID> = 1
<AppendWave> = X
<WaveType> = LIN
<SegLength> = 1500
<Amp> = 30
<Offset> = 15
<WaveLength> = 1500
<StartPoint> = 0
<SpeedUpDown> = 370
The previous contents
of the wave table are
overwritten by the
new segment,
waveform offset = 15
(Do not confuse with
the wave generator
output offset set with
WOS!)
WAV 2 X LIN 1500 40 0 1100 210 180
<WaveTableID> = 2
<AppendWave> = X
<WaveType> = LIN
<SegLength> = 1500
<Amp> = 40
<Offset> = 0
<WaveLength> = 1100
<StartPoint> = 210
<SpeedUpDown> = 180
The previous contents
of the wave table are
overwritten by the
new segment
