User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 15 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

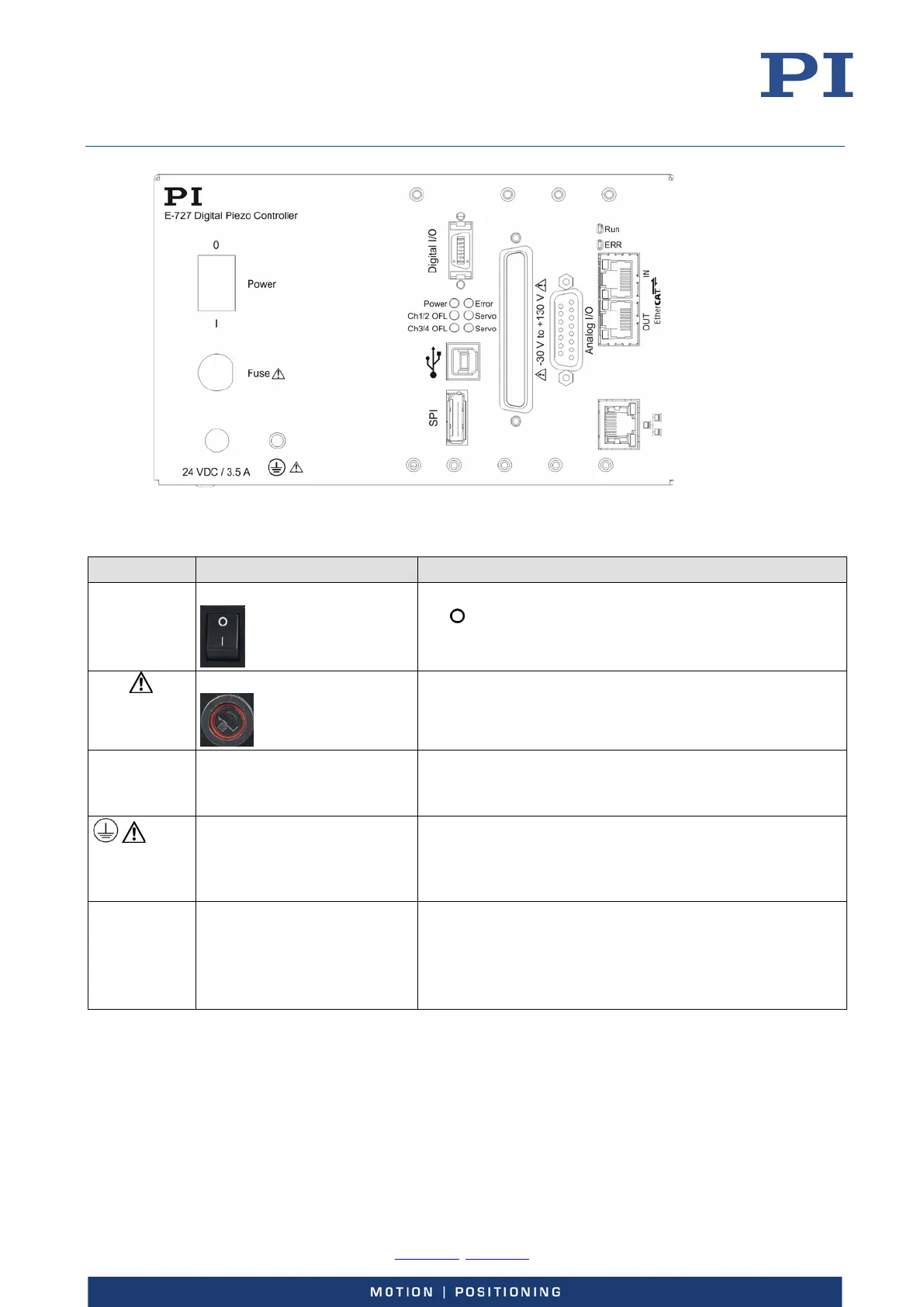

Figure 3: Front panel of E-727 digital piezo controllers, models E-727.xxxF, E-727.xxxAF
Labeling Type Function
Power
Toggle switch
Power on/off switch:
position: E-727 is switched off
| position: E-727 is switched on
Fuse
For cartridge fuse 5 x 20 mm, changing the fuse see p. 212
M8 panel plug, 4-pin (p. 232) Connection for the supply voltage.
To be used with the K050B0003 adapter (included in the
scope of delivery, p. 19)
material for protective earth
conductor
Protective earth connection (p. 48)
A protective earth conductor must be connected to the E-
727 via the M4 hole and the fastening material, since the E-
727 is not grounded via the power supply connector.
(p. 227)
Outputs: Triggering of external devices, output of the
servo cycles
Inputs: Triggering of data recorder or wave generator,
use in macros, reboot of E-727 (p. 227)
