User Manual
E727T0005, valid for E-727
BRO, 2019-06-28
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Page 32 / 240
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws

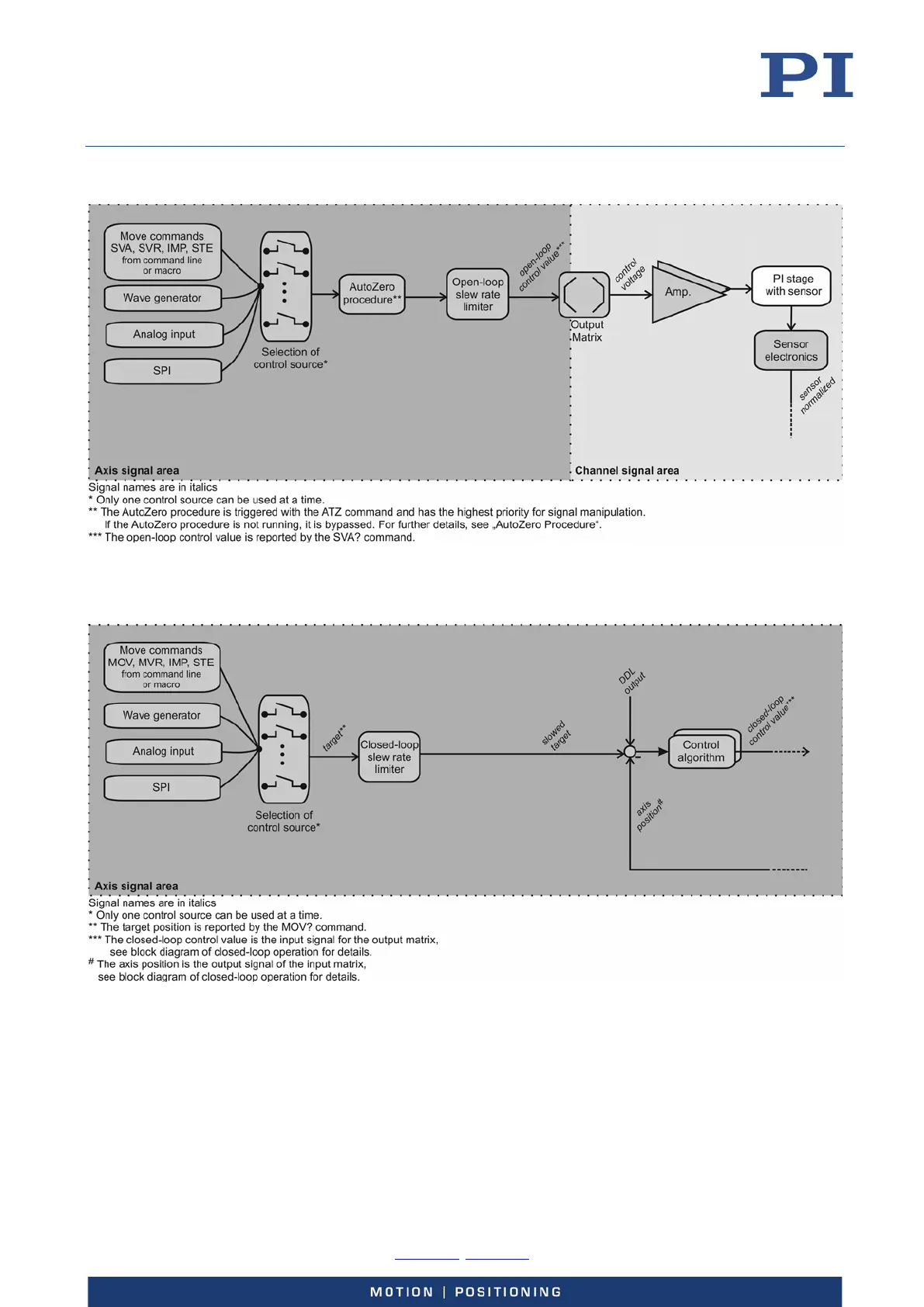

Open-Loop Control (all E-727 models):
Figure 9: Control sources for an axis in open-loop operation
Closed-Loop Control (E-727 models without EtherCAT interface):
Figure 10: Control sources for an axis in closed-loop operation
