Closed-Loop Control when EtherCAT communication is running (E-727.xxxF, .xxxAF only):

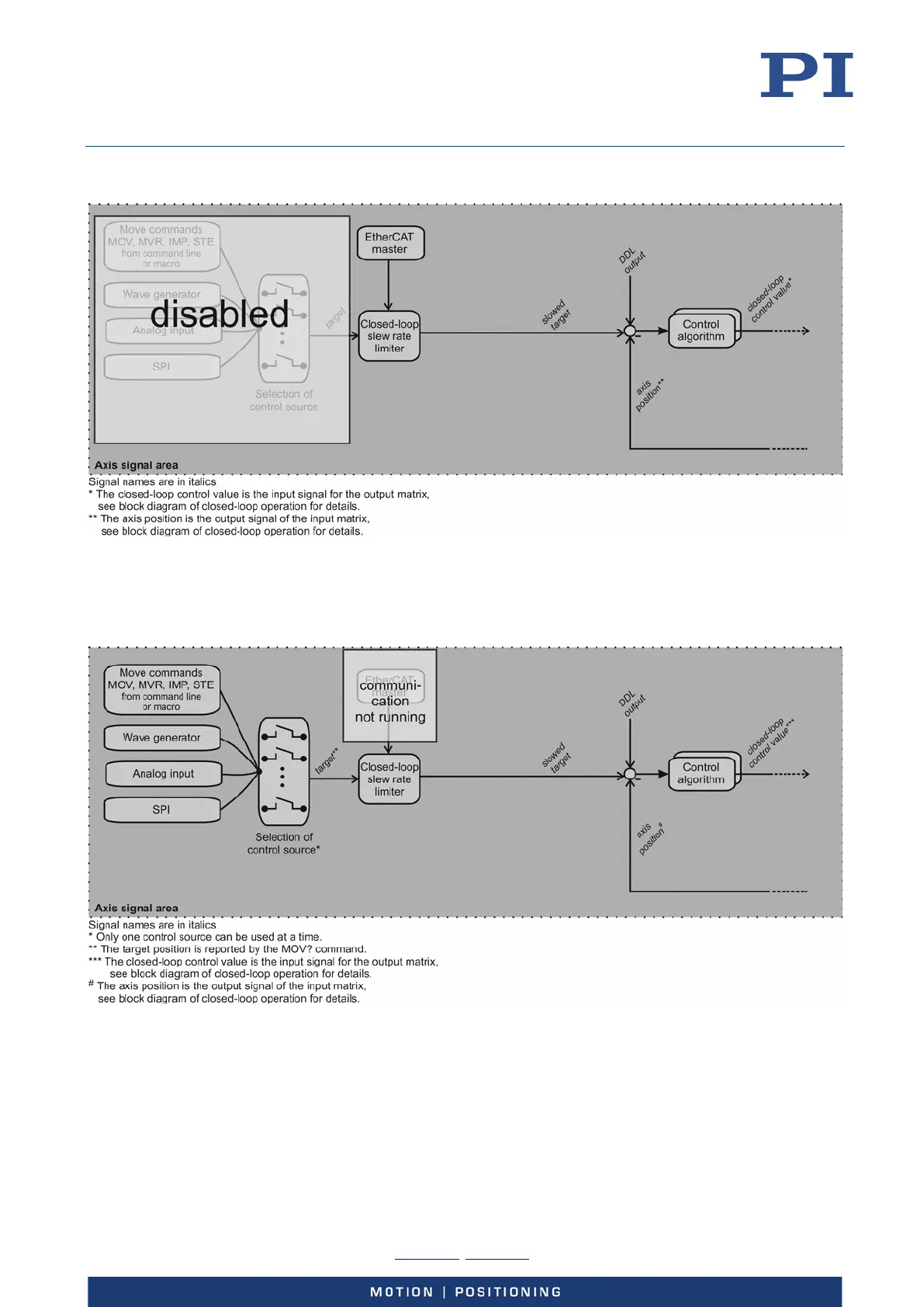

Figure 11: EtherCAT master controls an axis in closed-loop operation
Closed-Loop Control when EtherCAT communication does not run (E-727.xxxF, .xxxAF only):
Figure 12: EtherCAT communication does not run; control sources for an axis in closed-loop operation
