Piper ARROW III Service Manual

COMPONENT LUBRICANT FREQUENCY
1. MAIN GEAR PIVOT POINTS MIL-G-23827 100 HRS
2. MAIN GEAR DOOR HINGE MIL-L-7870 100 HRS
3. MAIN GEAR TORQUE LINKS MIL-L7870 100 HRS
4. EXPOSED OLEO STRUT MAIN
MIL-L-60326 100 HRS
5. MAIN GEAR WHEEL BEARINGS TEXACO MARFAX ALL
PURPOSE GREASE OR
MOBIL GREASE 77
(OR MOBIL EP2
GREASE) 100 HRS
6. MAIN GEAR DOOR CONTROL ROD ENDS MIL-L7870 100 HRS
7. MAIN GEAR SIDE BRACE LINK ASSEMBLY MIL-LG-23827 100 HRS
8. UPPER SIDE BRACE SWIVEL FITTING MIL-G-23827 100 HRS
9. MAIN GEAR DOWNLOCK ASSEMBLY
RETRACTION FITTING AND CYLINDER
ATTACHMENT POINTS MIL-L-7870 100 HRS
10. OLEO STRUT FILLER POINT (MAIN GEAR) MIL-H-5606 AS REQUIRED
11. HYDRAULIC PUMP RESERVOIR MIL-H-5606 100 HRS
12. BRAKE RESERVOIR MIL-H-5606 100 HRS

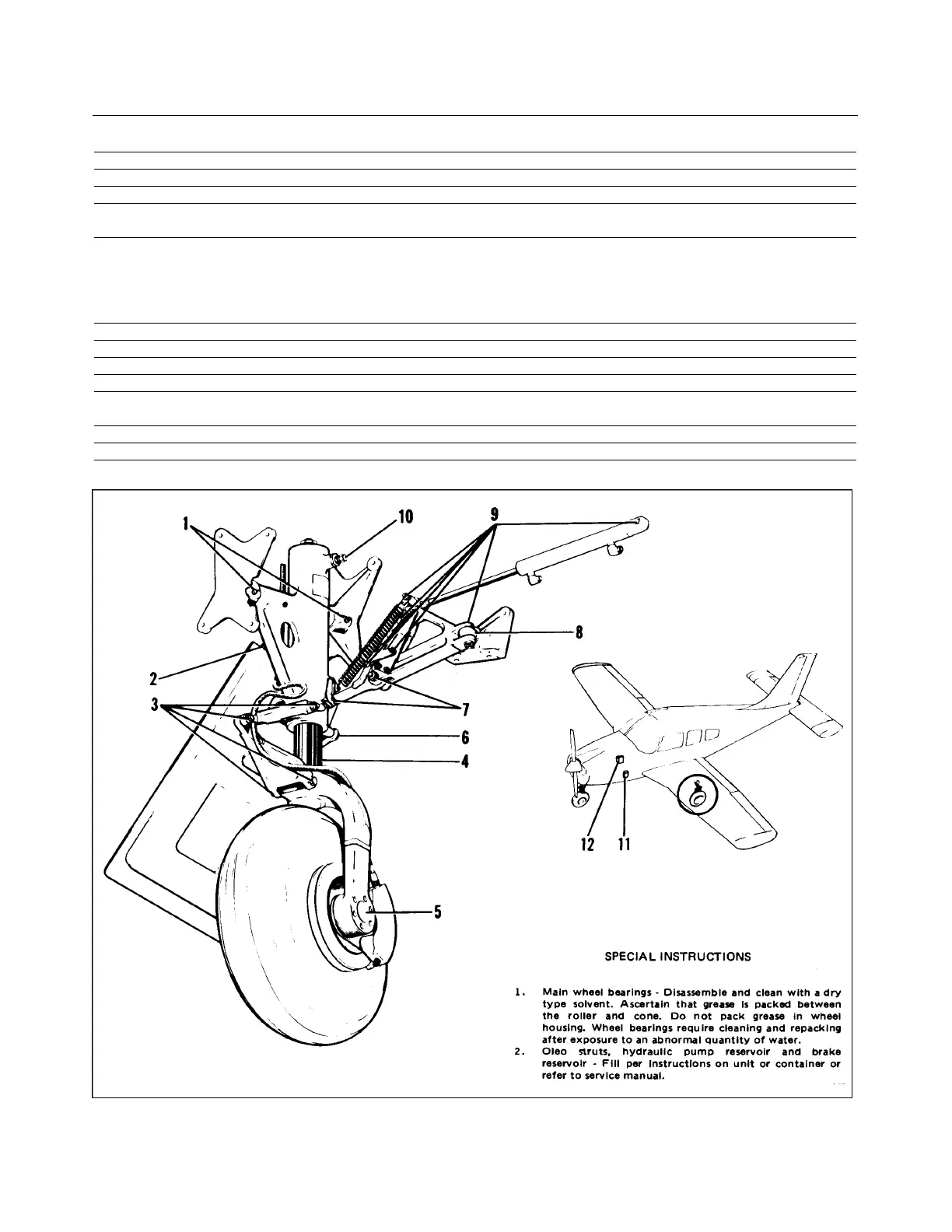

Figure 2-13. Lubrication Chart (Landing Gear, Main)
Revised: 8/31/77
1C14
*CHEROKEE ARROW III SERVICE MANUAL
HANDLING AND SERVICING

Piper ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	ARROW III
Engine	Lycoming IO-360-C1C6
Horsepower	200 hp
Maximum Takeoff Weight	2, 750 lb (1, 247 kg)
Seating Capacity	4
Propeller	2-blade, constant speed
Length	24 ft 7 in (7.49 m)
