Piper ARROW III Service Manual

COMPONENT LUBRICANT FREQUENCY
1. NOSE GEAR STRUT HOUSING GREASE FITTING MIL-G-23827 100 HRS.
2. NOSE GEAR PIVOT POINT AND HYDRAULIC
CYLINDER ROD END MIL-L-7870 100 HRS
3. NOSE GEAR DOOR RETRACTION MECHANISM MIL-L-7870 100 HRS
4. NOSE GEAR DOOR HINGES MIL-L-7870 100 HRS
5. EXPOSED OLEO STRUT
MIL-L-60326 100 HRS
6. NOSE WHEEL BEARINGS TEXACO MARFAX ALL
PURPOSE GREASE OR
MOBIL MOBIL GREASE
77 (OR MOBIL EP2 GREASE) 100 HRS
7. NOSE GEAR DRAG LINK ASSEMBLIES MIL-L-7870 100 HRS
8. NOSE GEAR TORQUE LINK ASSEMBLY AND
STRUT HOUSING MIL-G-23827 100 HRS
9. DOWNLOCK, ROLLER TENSION SPRING,
SHIMMY DAMPENER AND ALIGNING ROLLER
PIVOT POINTS MIL-L-7870 100 HRS
10. STEERING BELLCRANK PIVOT POINTS AND
ROD ENDS MIL-L-7870 100 HRS
11. NOSE GEAR OLEO STRUT FILLER POINT MIL-H-5606 AS REQUIRED
12. BUNGEE SPRING MIL-G-7711 100 HRS
13. FIREWALL BUNGEE SEAL AERO LUBRIPLATE 100 HRS
OR MAG-1

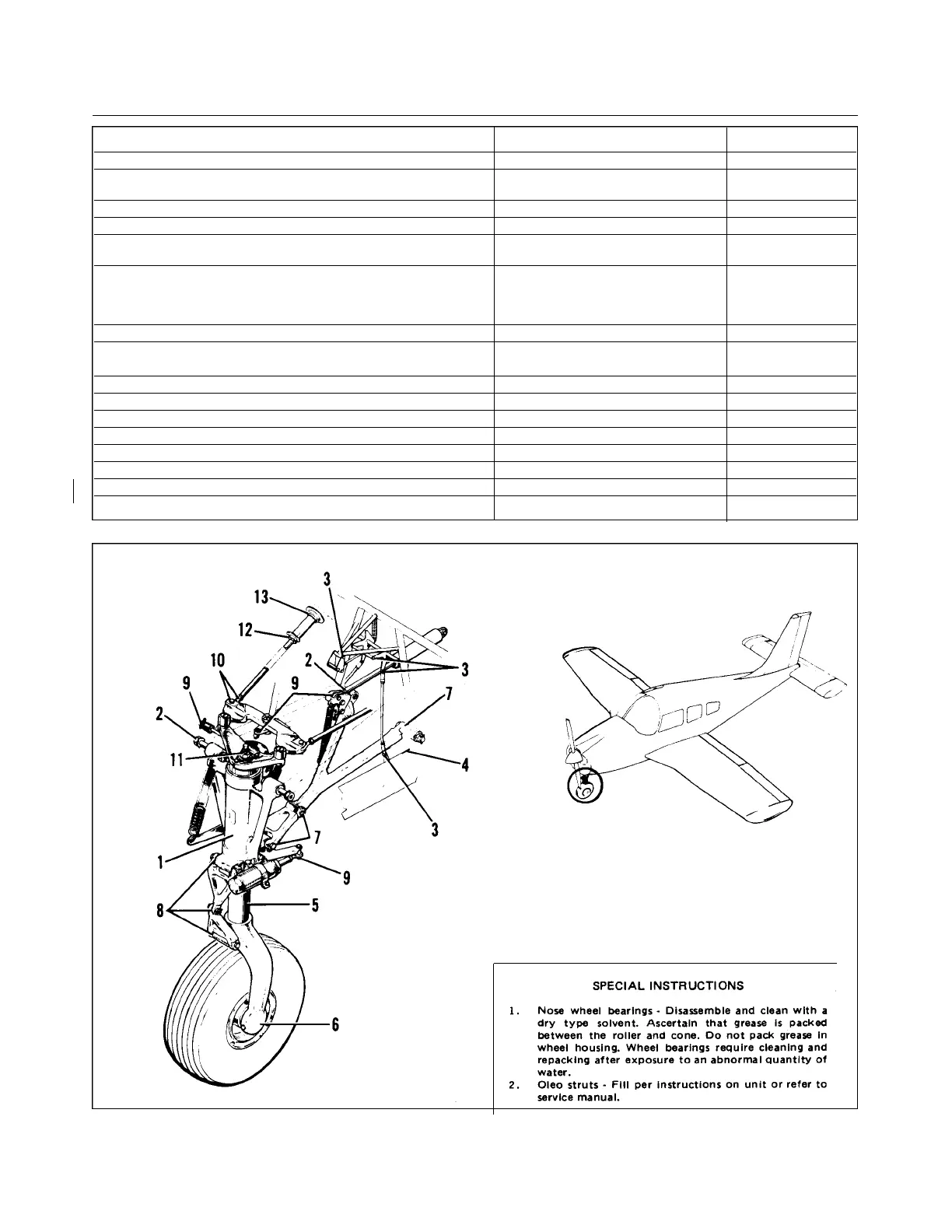

Figure 2-14. Lubrication Chart (Landing Gear, Nose)
Revised: 7/13/81
1C15
*CHEROKEE ARROW III SERVICE MANUAL
HANDLING AND SERVICING

Piper ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	ARROW III
Engine	Lycoming IO-360-C1C6
Horsepower	200 hp
Maximum Takeoff Weight	2, 750 lb (1, 247 kg)
Seating Capacity	4
Propeller	2-blade, constant speed
Length	24 ft 7 in (7.49 m)
