Piper ARROW III Service Manual

– CAUTION –
Do not lubricate control wheel shaft or bushing. Clean only using alcohol
or other uitable solvent.
COMPONENT LUBRICANT FREQUENCY
1. AILERON HINGE PINS MIL-L-7870 100 HRS
2. FLAP HINGE BEARINGS MIL-L-7870 100 HRS
3. STABILTOR HINGE PINS MIL-L-7870 100 HRS
4. RUDDER HINGE BEARINGS MIL-L-7870 100 HRS
5. CONTROL CABLE PULLEYS MIL-L-7870 100 HRS
6. TRIM CONTROL WHEEL MIL-L-7870 100 HRS
7. O-RING, CONTROL SHAFT BUSHING PARKER O-RING*
LUBRICANT AS REQUIRED
8. TEE BAR PIVOT POINT MIL-L-7870 100 HRS
9. CONTROL COLUMN CHAIN MIL-L-7870 100 HRS
10. CONTROL COLUMN FLEX JOINTS AND SPROCKET MIL-L-7870 100 HRS
11. STABILATOR CONTROL MIL-L-7870 100 HRS

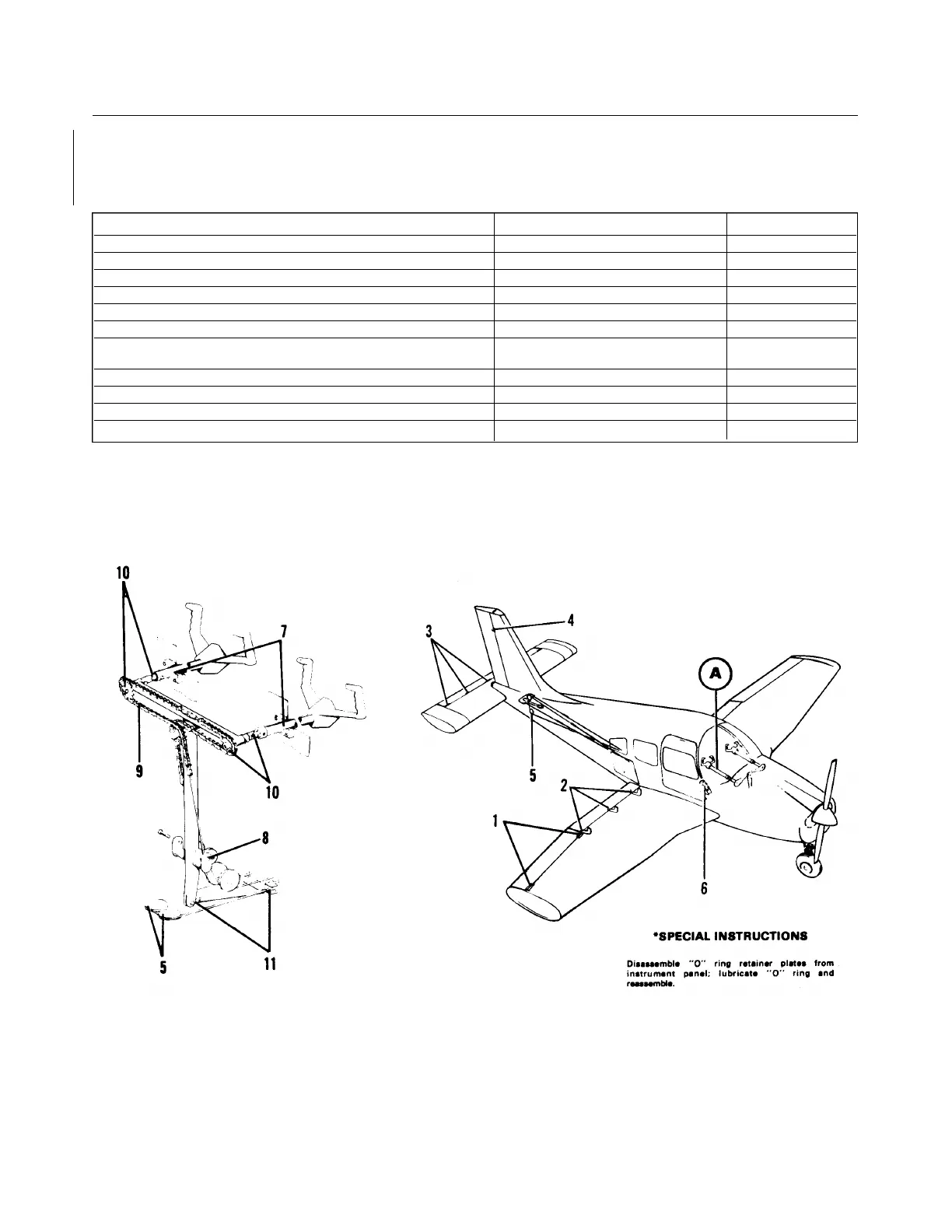

Figure 2-15. Lubrication Chart (Control system)
Interim Revision: July 30, 1986
1C16
*CHEROKEE ARROW III SERVICE MANUAL
HANDLING AND SERVICING

Piper ARROW III Specifications

General

Manufacturer	Piper Aircraft
Model	ARROW III
Engine	Lycoming IO-360-C1C6
Horsepower	200 hp
Maximum Takeoff Weight	2, 750 lb (1, 247 kg)
Seating Capacity	4
Propeller	2-blade, constant speed
Length	24 ft 7 in (7.49 m)
