Pitco SSH Series - Pitco Basket Lift Driver Board Replacement

PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 45

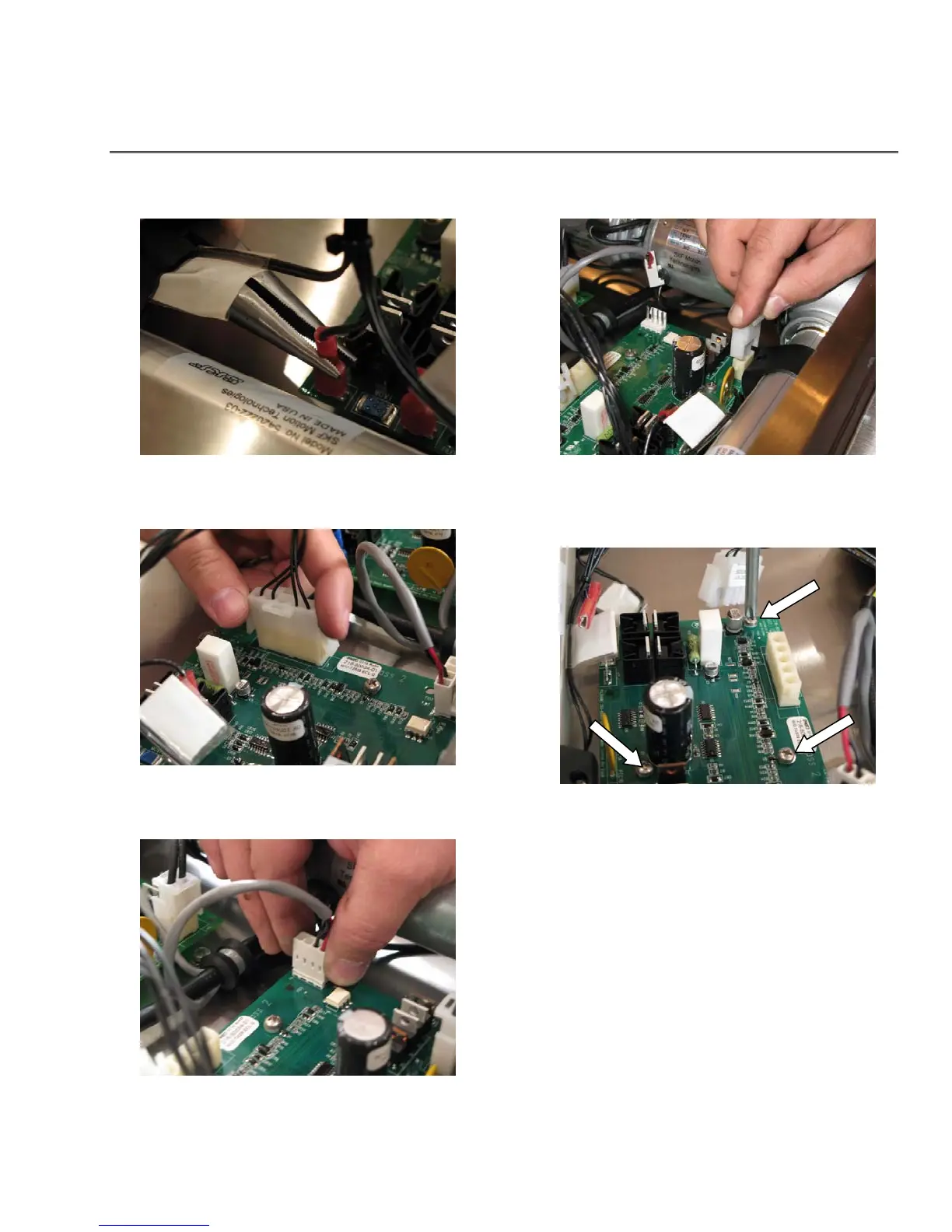

ReplacingtheBasketLiftDriverBoard
1. Remove all wires on basket lift driver board
using needle-nose pliers.
2. Remove the sensor connection using needle-
nose pliers.
3. Remove the control signal connection using
needle-nose pliers.
4. Remove the actuator power connection using
needle-nose pliers.
5. Remove the four (4) screws, which hold the
basket lift driver board, using a Phillips
screwdriver.
6. Follow steps 1 through 5 in
reverse to reinstall a
new basket lift driver board.
