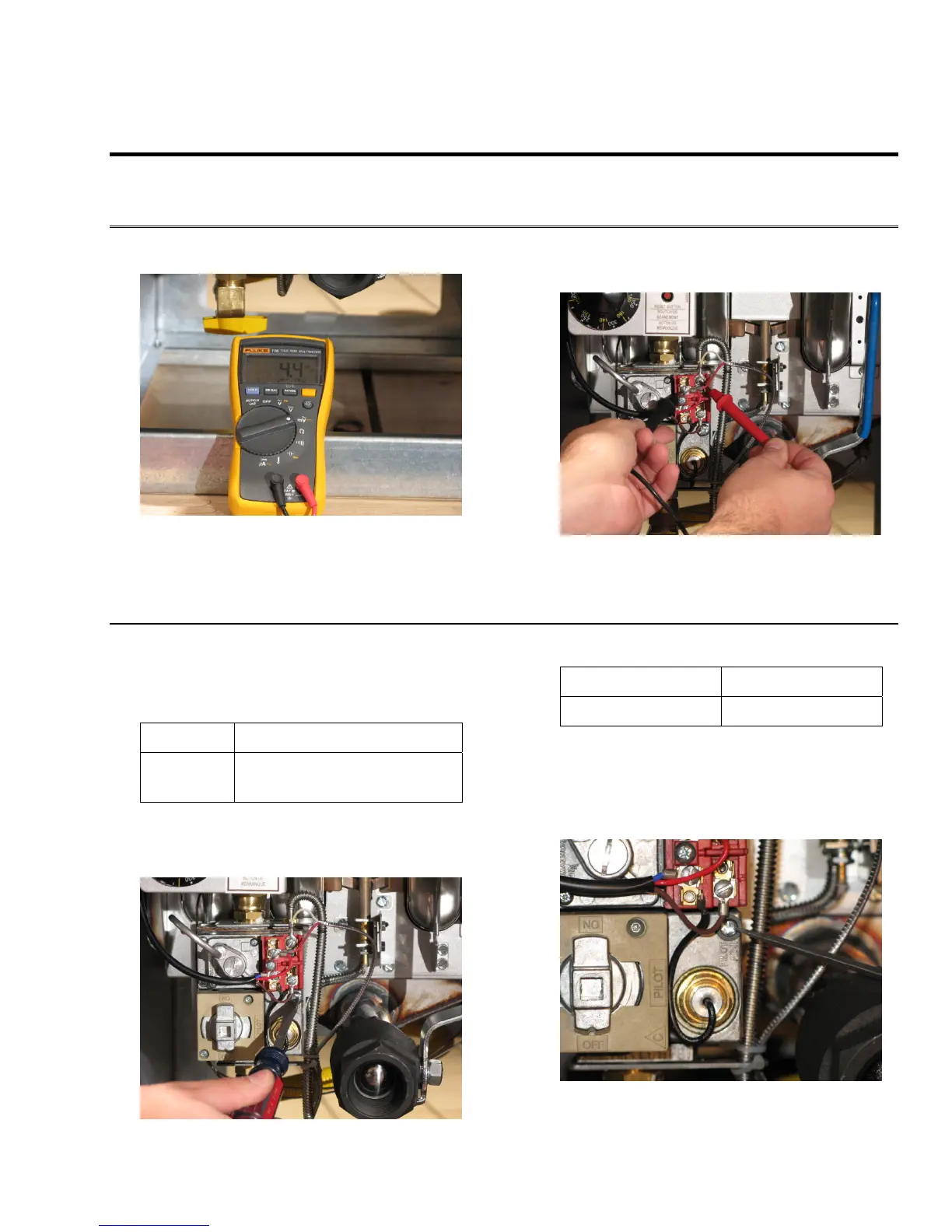

MeasuringThermopile
TakingaMillivoltReading
1. Make sure the multimeter is set to mV.
2. Touch the thermopile leads with the multimeter
probes as shown.
AdjustingtheThermopile
1. Compare the multimeter reading to the
Thermopile mV table.
ThermopilemVTable
Pilot lit Pilot lit with burners on
PP1 to PP2
600± mV
PP2 to TH2 approximately
300 mV less than pilot alone
2. Insert a flathead screwdriver into the Pilot Adj.
cap and turn counter-clockwise to remove it.
mVGasValveResistanceReadingsTable
Pilot Valve Main Valve
TH 1 to PP 2 10.4 Ω TH 2 to PP 2 2.0 Ω
3. Insert flathead screwdriver into Pilot Adj. screw
and turn counter-clockwise to increase the mV
pressure or clockwise to decrease the mV
pressure.
4. Disconnect the multimeter.
