PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 46

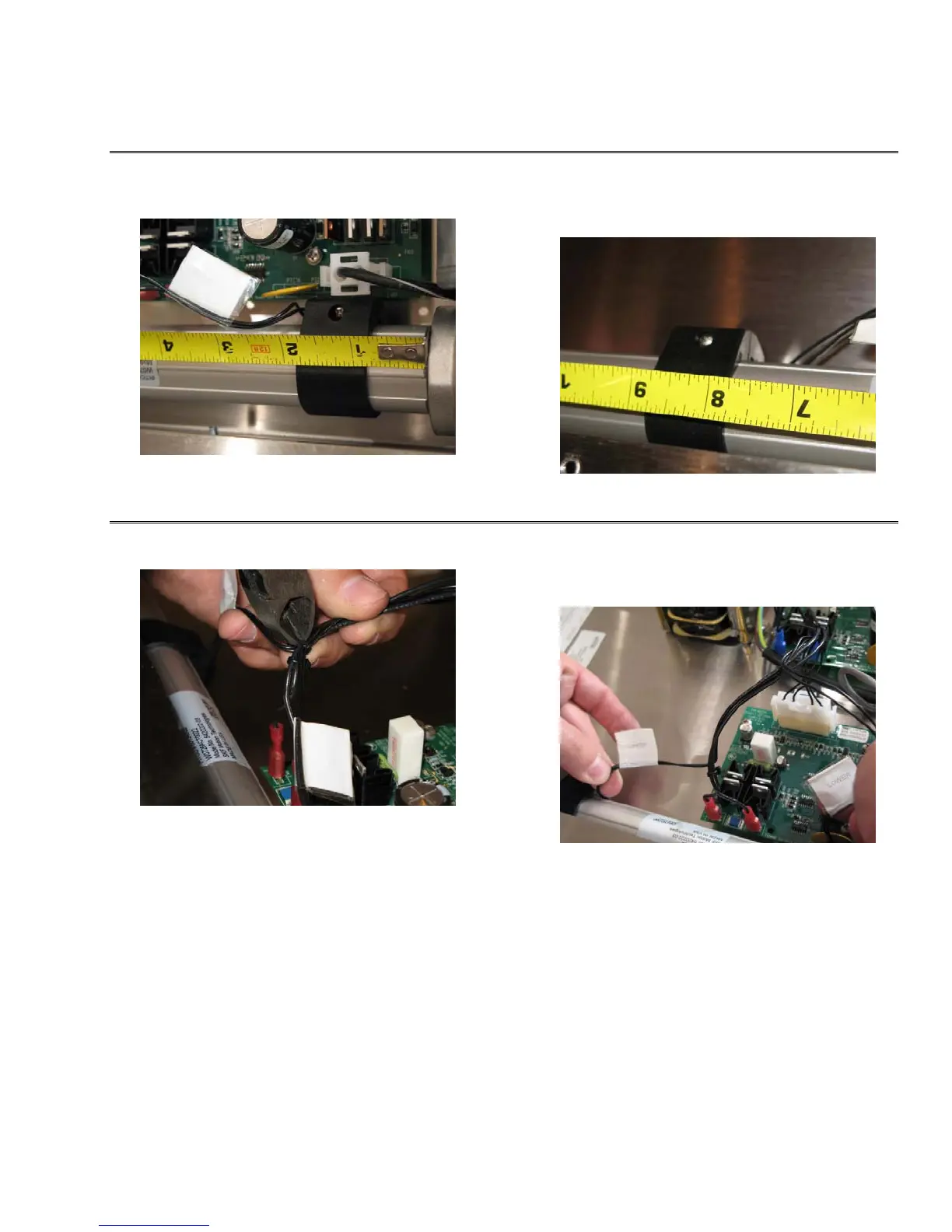

AdjustingtheMagneticSensor
1. Make sure the sensor is approximately 3/4 inch
from top of the motor to bottom of the sensor.
2. Make sure the sensor is approximately 7 3/4
inch from top of the motor to bottom of the
sensor.
ReplacingtheBasketLiftActuator
1. Cut all zip ties on the basket lift driver board.
2. Disconnect the transformer from the driver
board. See “Wiring Diagram – Basket Lifts” on
page 91.
