PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 47

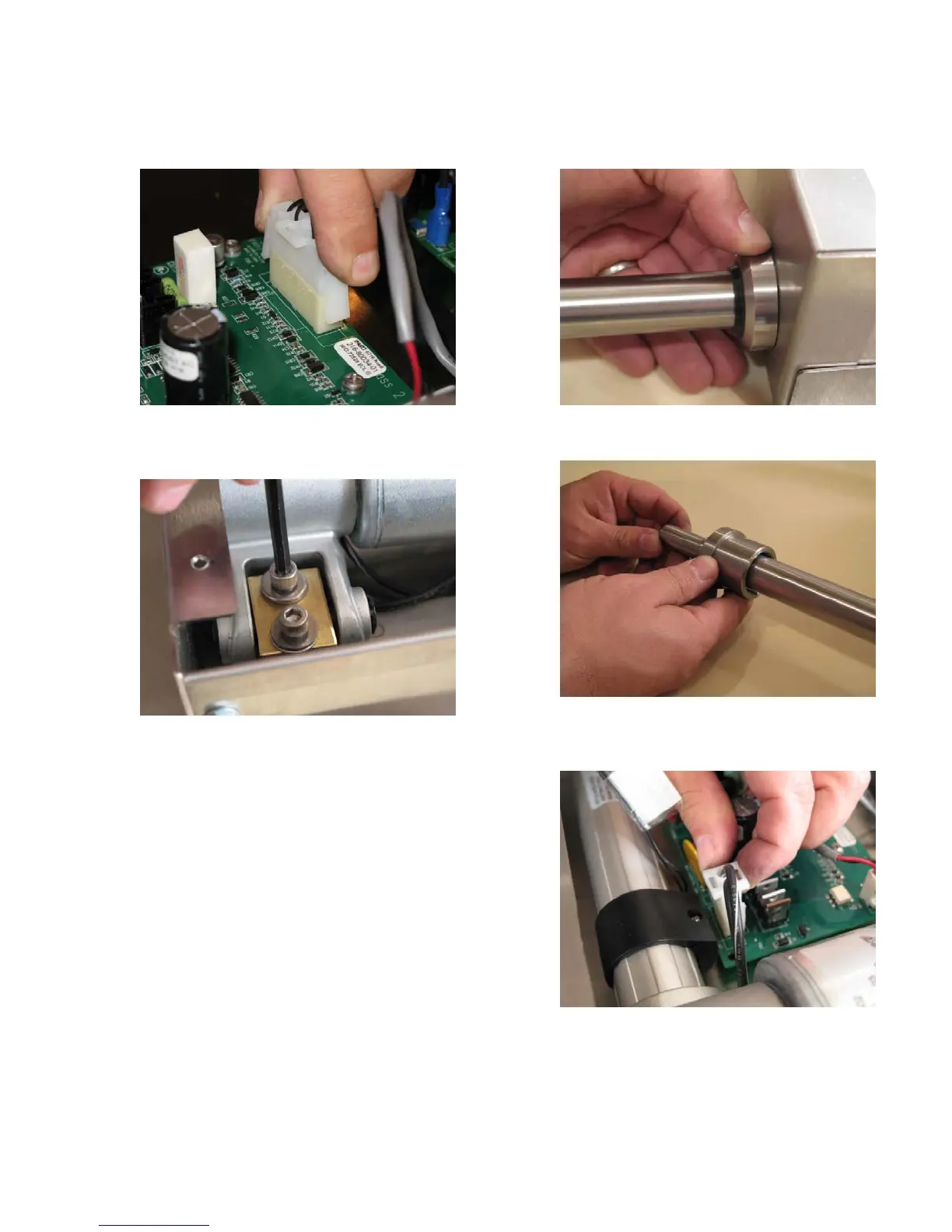

3. Disconnect the upper and lower limit
connections on the basket lift driver board.
4. Remove the two (2) bolts, which hold the
actuator, using a 3/16 inch Allen key.
5. Remove the top retaining bushing by
unscrewing.
6. Slide the bushing off the shaft.
7. Disconnect the motor connector from the driver
board.
