Pitco SSH Series - Pitco Igniter Pilot Assembly Replacement

PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 28

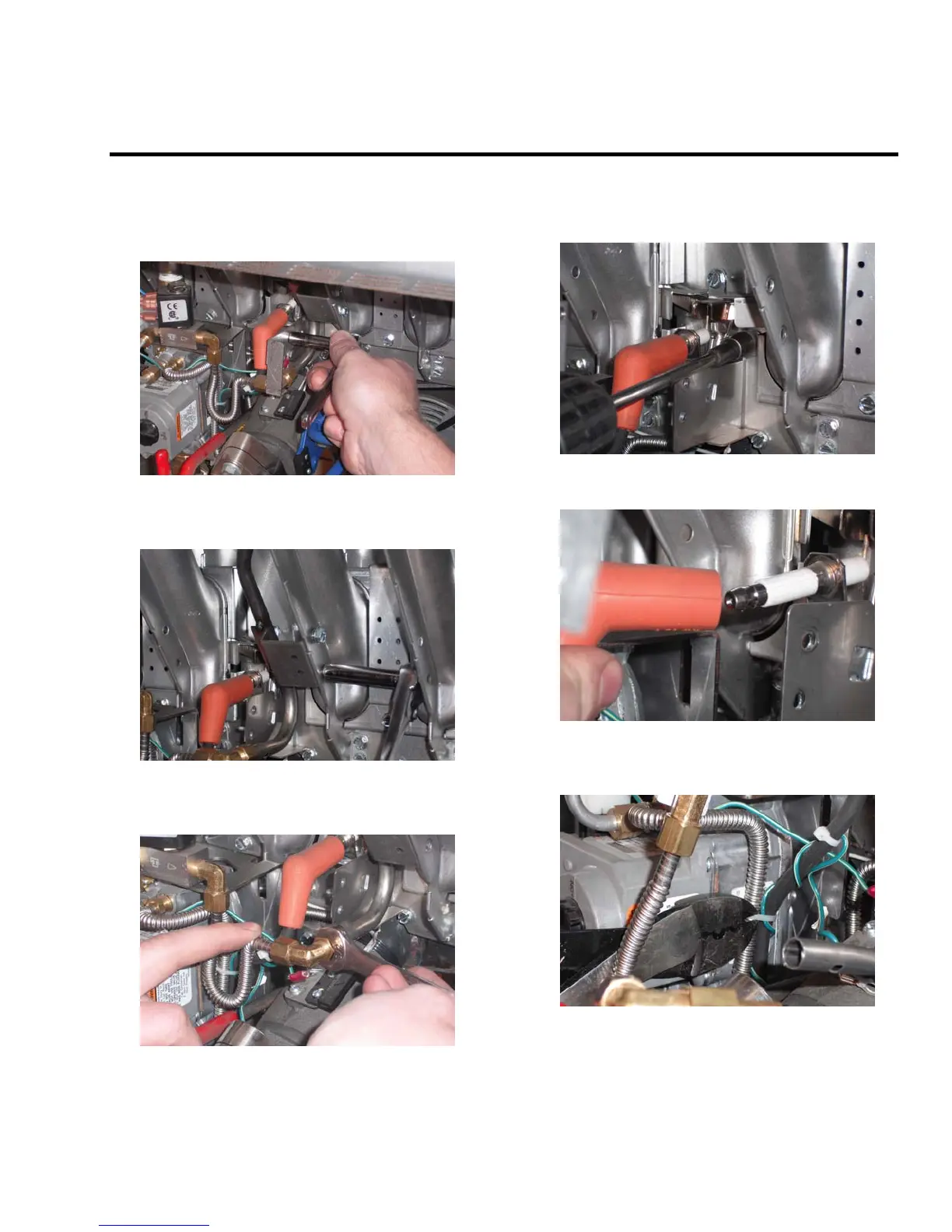

ReplacinganIgniter/PilotAssembly
1. Remove the two (2) screws, which hold the pilot
and runner tube orifice bracket, using a
5/16 inch socket.
2. Remove the two (2) screws, which hold the
runner tube, using a 5/16 inch socket.
3. Remove the runner tube orifice using a 1/2 inch
open-ended wrench.
4. Remove the two (2) screws, which hold the
pilot, using a 5/16 inch socket.
5. Remove the ignition wire.
6. Cut the zip ties, which hold the ignition wire to
the pilot tubing.
