PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers
SG/SSHSeriesServiceManual 27

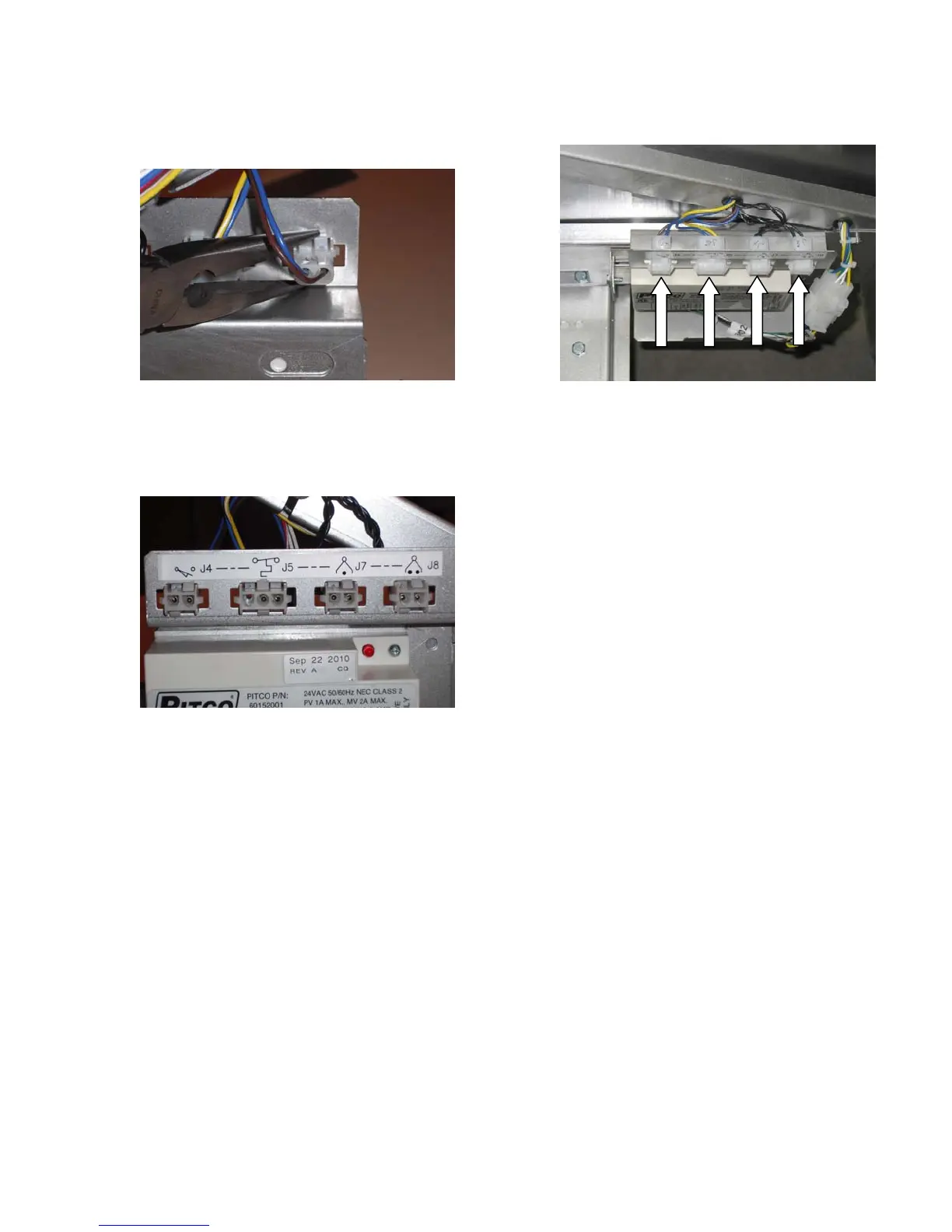

14. Disconnect J4, J5, J7, J8 plugs using needle-
nose pliers.
15. Make sure to connect the new plugs into the
correct connector location.
TopViewofPlugs
J4
J5
J7
J8
16. Follow steps 1 thro
ugh 15 in reverse to reinstall
the entrance box and
new spinal tap wiring
harness.
SideViewofPlugs
