PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers
SG/SSHSeriesServiceManual 36

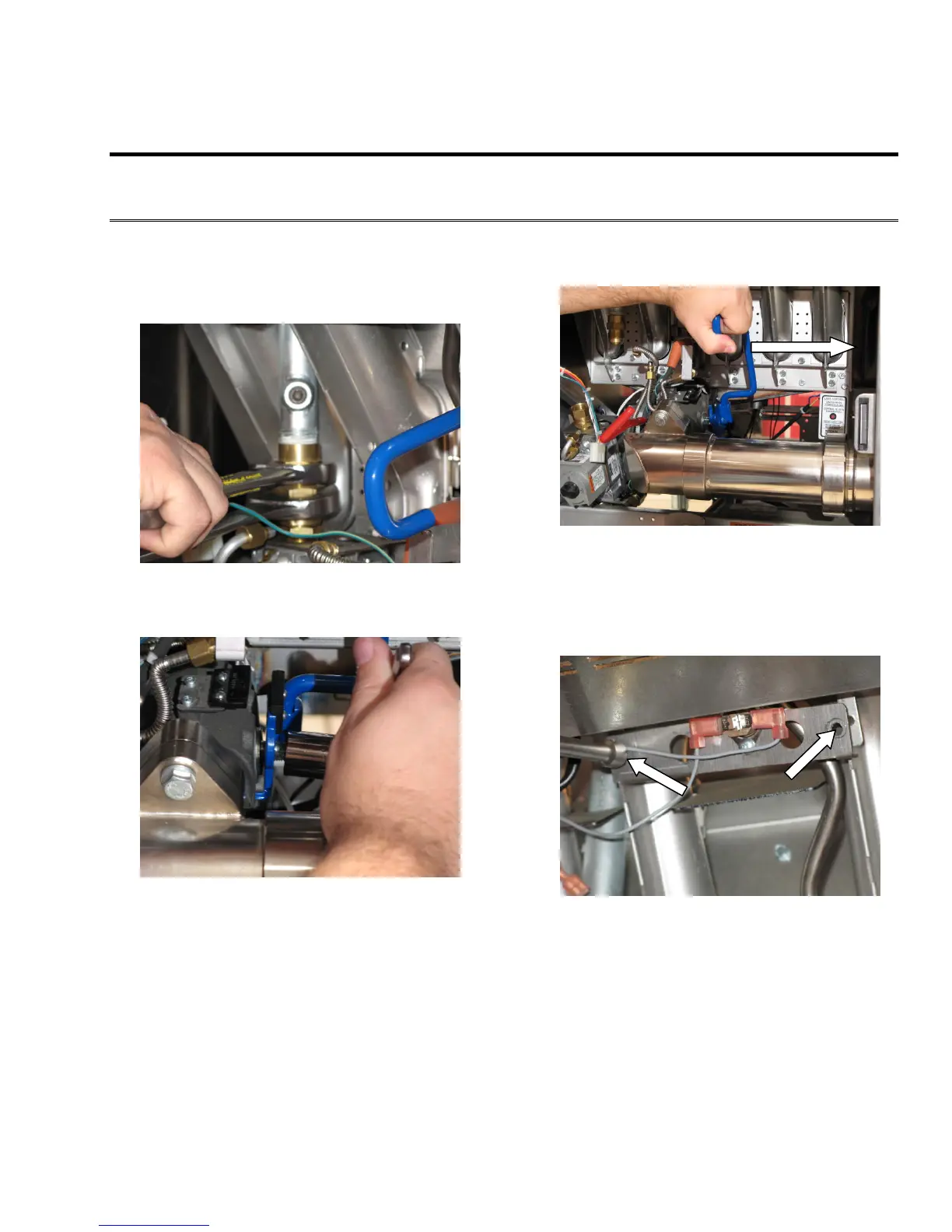

ReplacingtheBurnerAssembly
ReplacingtheBurner(s)
1. Drop the gas valve out of the way by holding the
elbow with a wrench and removing the swivel
nut on the top gas valve fitting using a
15/16 inch open-ended wrench.
2. Remove the nut, which holds the drain valve
handle, using an 11/16 inch socket.
NOTE: Hold the drain valve handle when
removing the nut to ensure that the
oil does not drain out.
3. Remove the drain valve handle by sliding handle
off the stem.
4. Remove the pilot assem
bly. See “Replacing an
Igniter/Pilot Assembly” on page 28.
5. Remove the tw
o (2) screws, which hold the
rollout switch, using a 5/16 inch socket.
