Pitco SSH Series - Replacing the Drain Line or Gasket

PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 74
ReplacingtheDrainLineorGasket

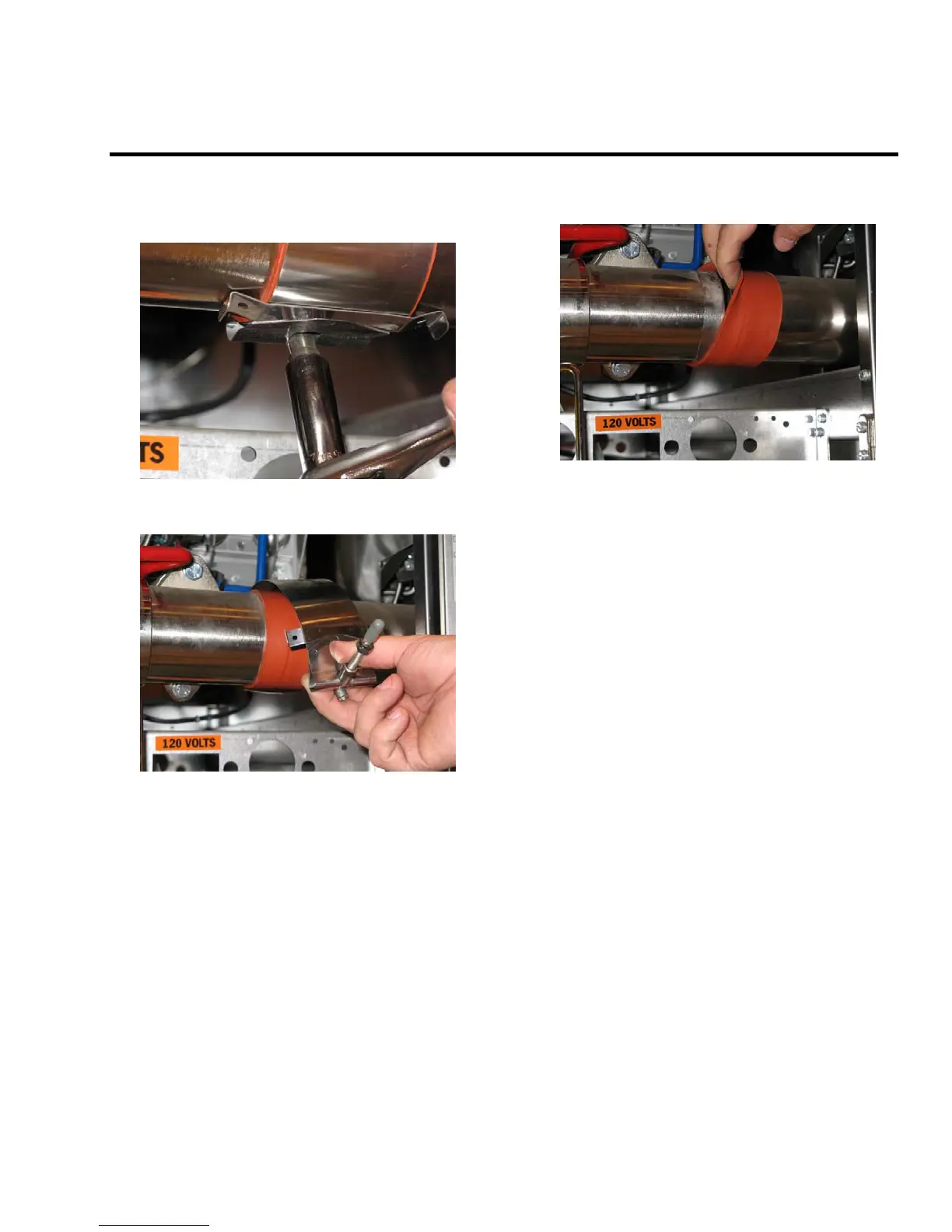

1. Remove one (1) screw on the drain line using a
7/16 inch wrench.
2. Lift off the drain manifold clamp.
3. Slide off the drain manifold gasket.
4. Slide out the drain line.
5. Reinstall the new drain line by following steps 1
through 4 in reverse to.
