Pitco SSH Series - Pitco Transformer Box Replacement

PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



SG/SSHSeriesServiceManual 33

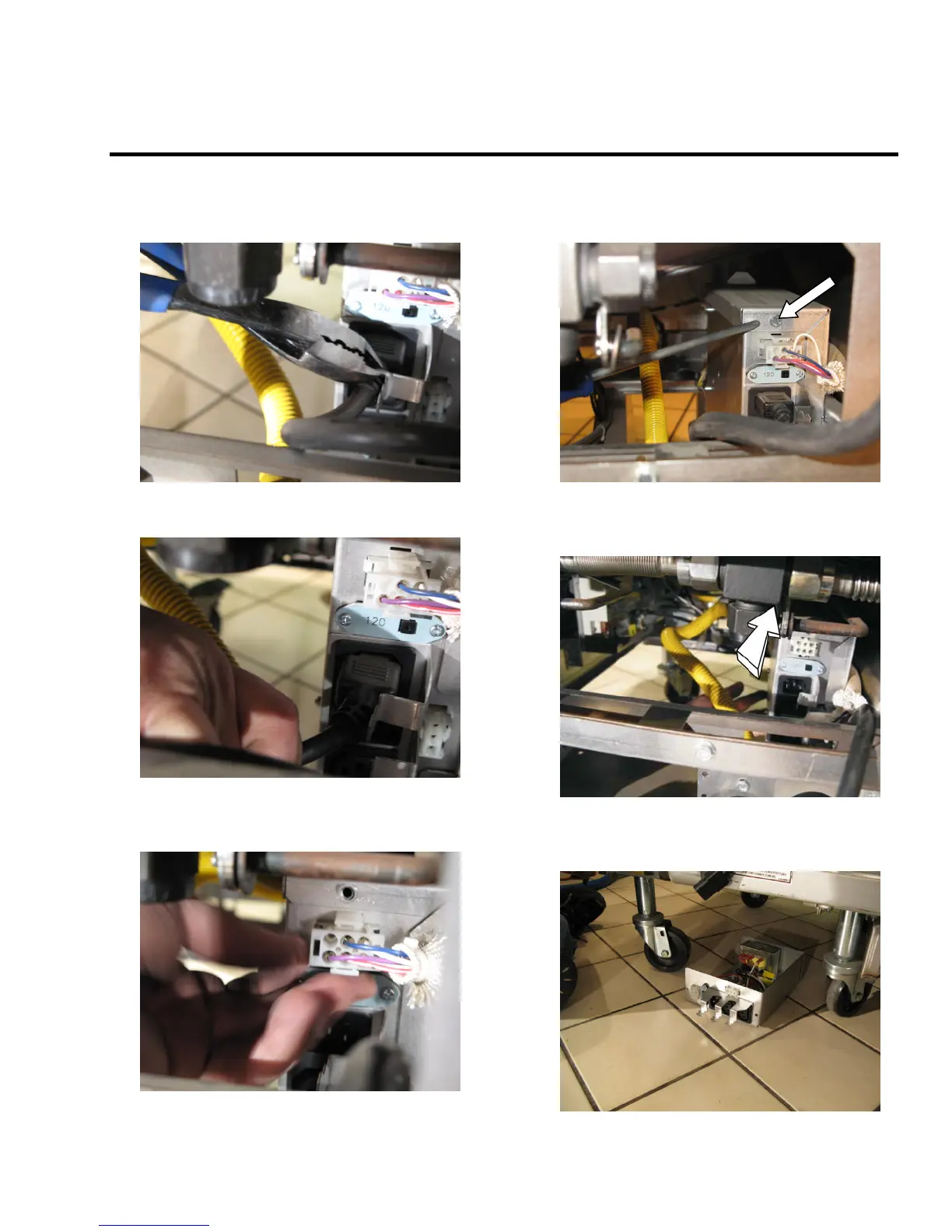

ReplacingtheTransformerBox
1. Cut the zip ties on the transformer box power
supply cords.
2. Remove transformer box power supply cords.
3. Disconnect the spinal tap wiring harness from
the transformer box.
4. Remove the two (2) screws, which hold the
transformer box, using a 5/16 inch socket.
5. Remove the transformer box by pushing the box
towards the front of the unit.
6. Lower the transformer box to the floor and then
pull out.
