Pitco SSH Series - Page 69

PitcoSolsticeandSolsticeSupremeHighEfficiencyGasFryers



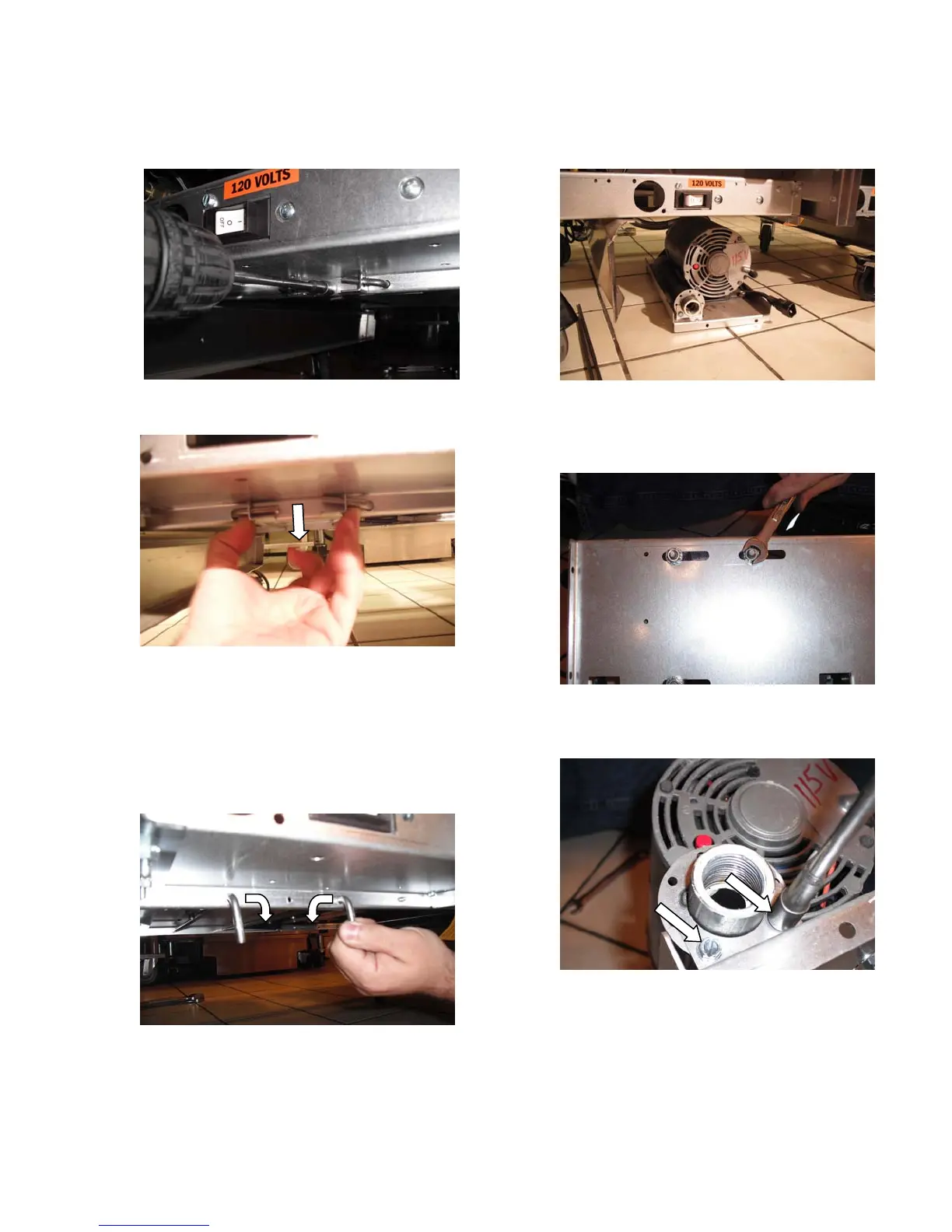

7. Remove one (1) screw, which holds the bracket,
using a 5/16 inch socket.
8. Remove the bracket.
NOTE: The filter pump will fall to the floor
once the pins are pulled out. It is
recommended that you brace the
pump and motor before pulling out
the pins.
9. Turn down the pins and then pull them out.
10. Lower the filter pump to the floor and then pull
it out.
11. Remove the three (3) bolts on the bottom of the
filter pump base using a 1/2 inch open-ended
wrench.
12. Remove two (2) screws on back of filter pum
p
using a 5/16 inch socket.

SG/SSHSeriesServiceManua
l 69
