DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)

4-13

Troubleshooting/Diagnostics • 4

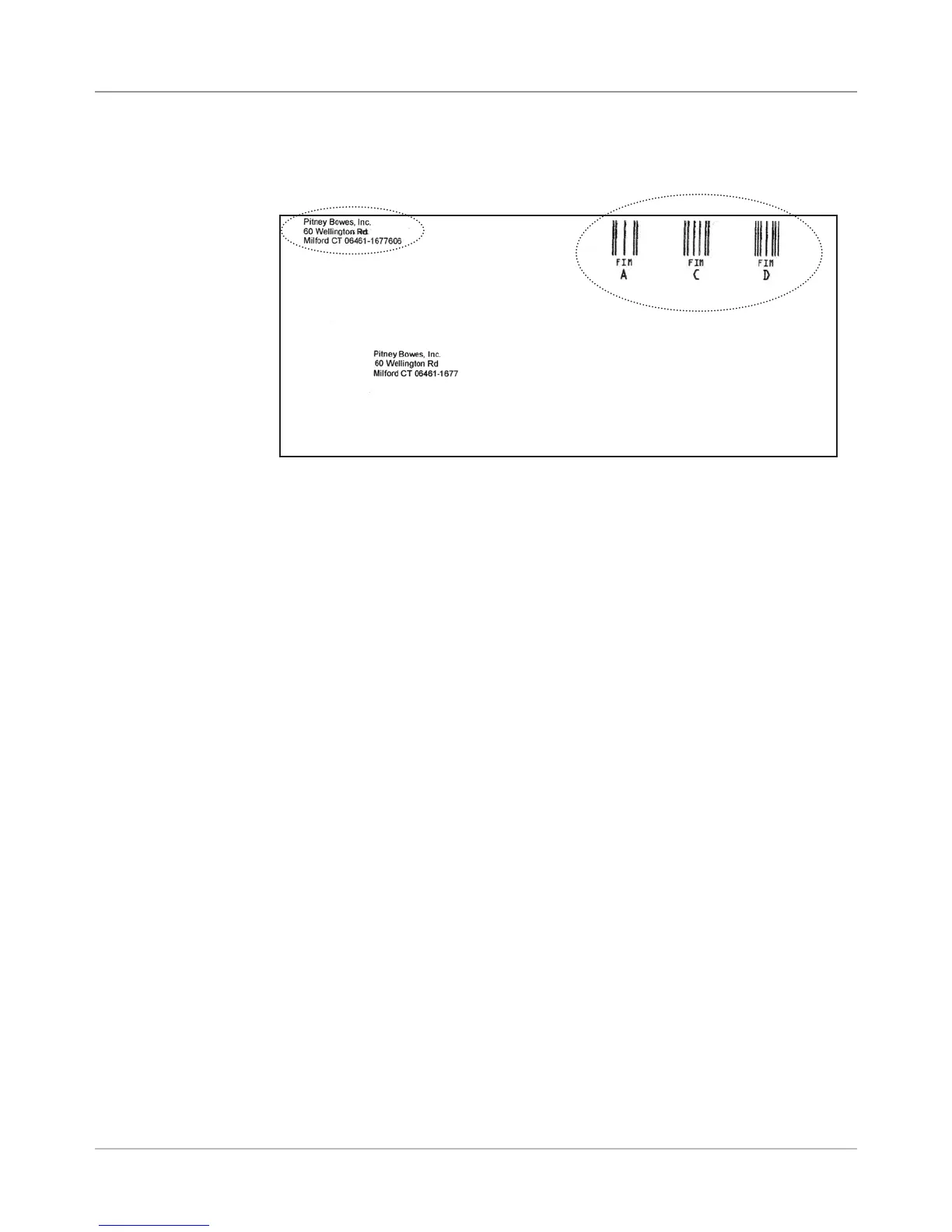

Figure 4-6 Sample Envelope Printed with a Variety of Options

All 3 versions of FIM

Barcode (USPS)

Return Address

4.5 Print

Samples for

Troubleshooting
