DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
5-47
Removal and Replacement • 5
DA95F (WF96) - Standard Feeder (WF9S) Parts Removal
5.27 Motor/
Drive
Assembly
on Standard
Feeder
(continued)

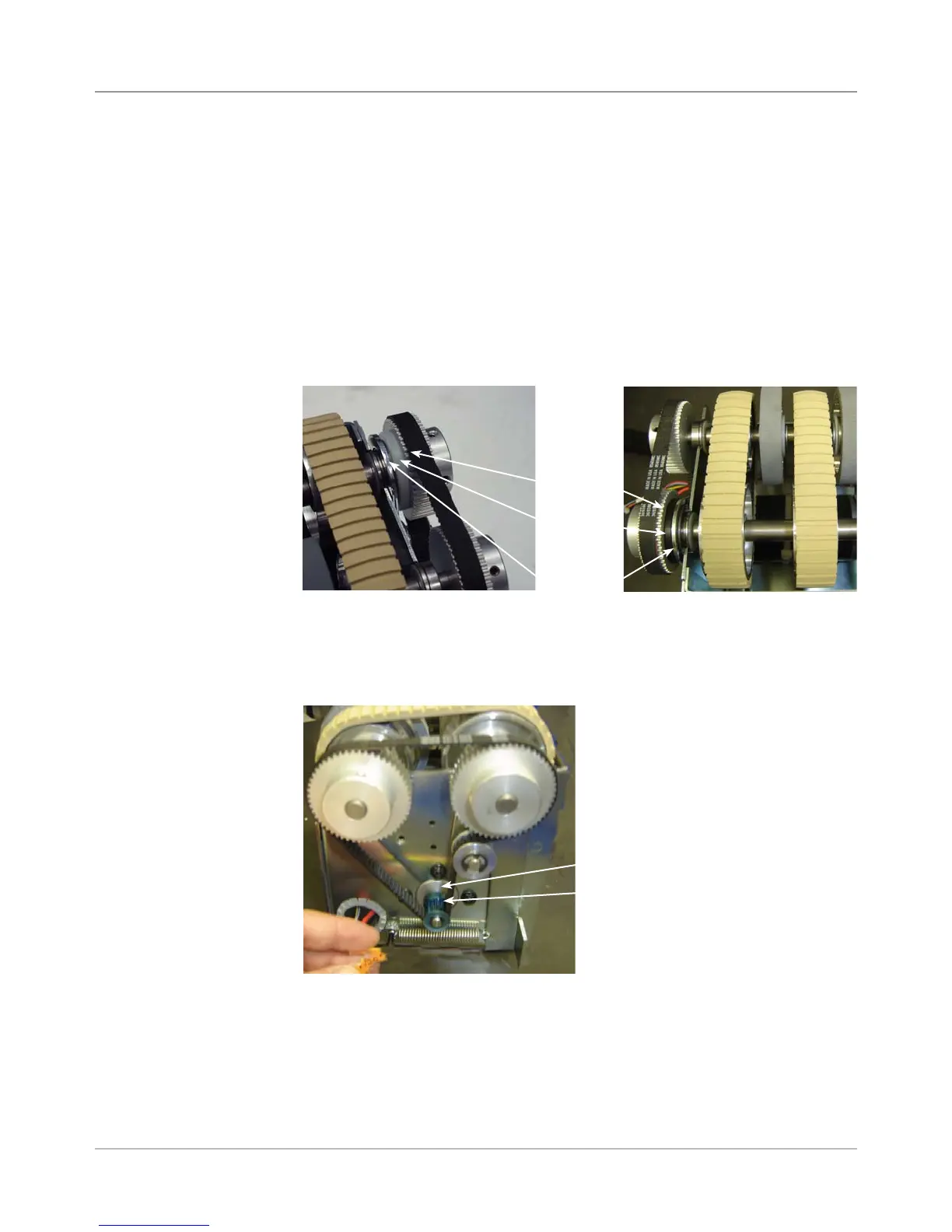

Gap Adjustment Procedures (if Pulleys have Been Removed from
Shafts)
A. Gap Between Tensioner and Pulley
Place 0.010” shim between tensioner and pulley when reinstalling upper
shaft.
Pulley
Motor Face
B. Gap Between Pulley and Motor Face
Place 0.150” shim between pulley and motor face when reinstalling the
lower drive shaft.
7. Replace in reverse order.
NOTE: When reassembling the shafts, you need to do the adjustments
below.
Tensioner
Pulley
Shim
To Next Page
