4-4 DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)

4 • Troubleshooting/Diagnostics

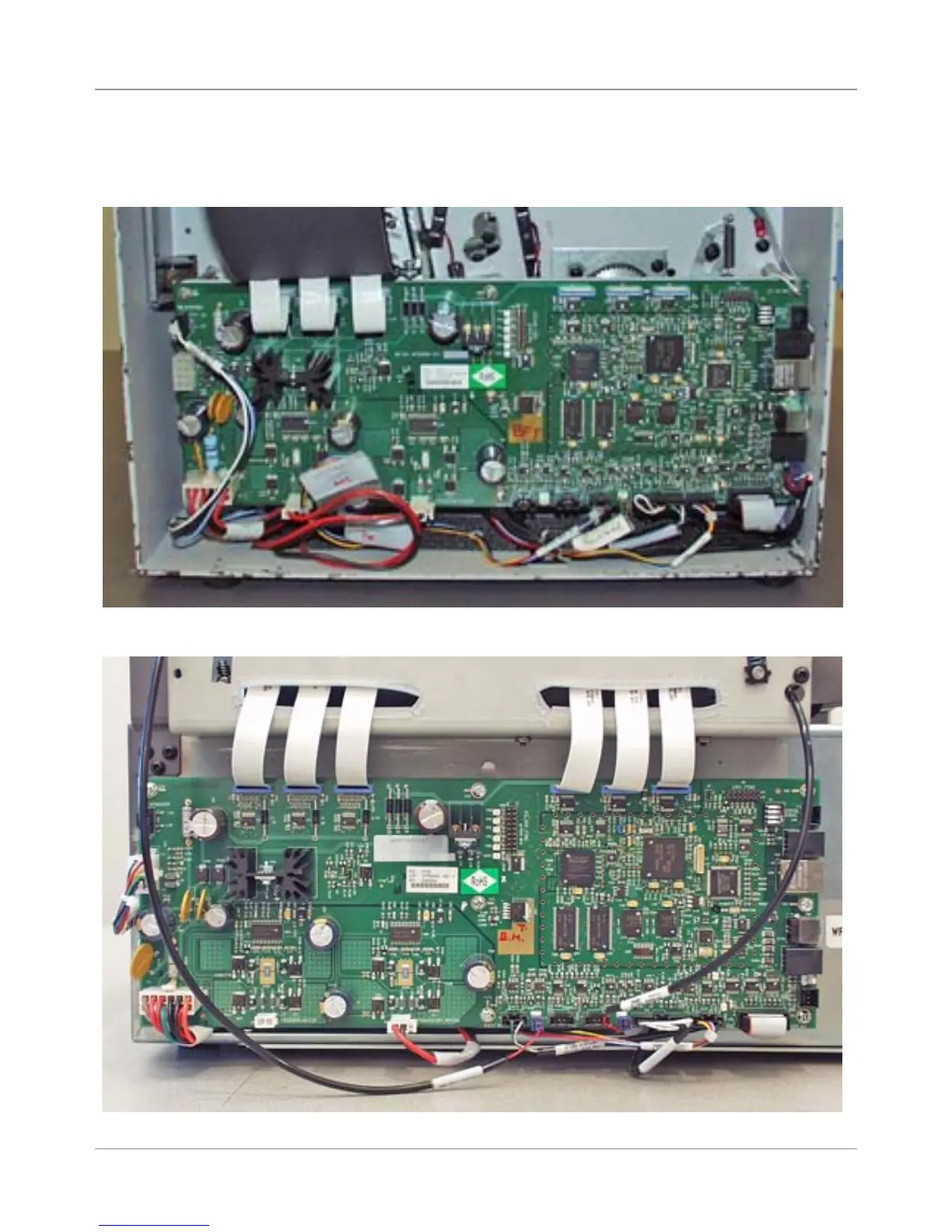

Figure 4-3 Main Controller Board Mounted in DA80F (WF81) Printer

4.3 Main Controller

Board Diagnostics

Figure 4-4 Main Controller Board Mounted in DA95F (WF96) Printer
