DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
5-19
Removal and Replacement • 5
DA80F (WF81) Parts Removal
5.13 Transport
Motor
Assembly
(continued)

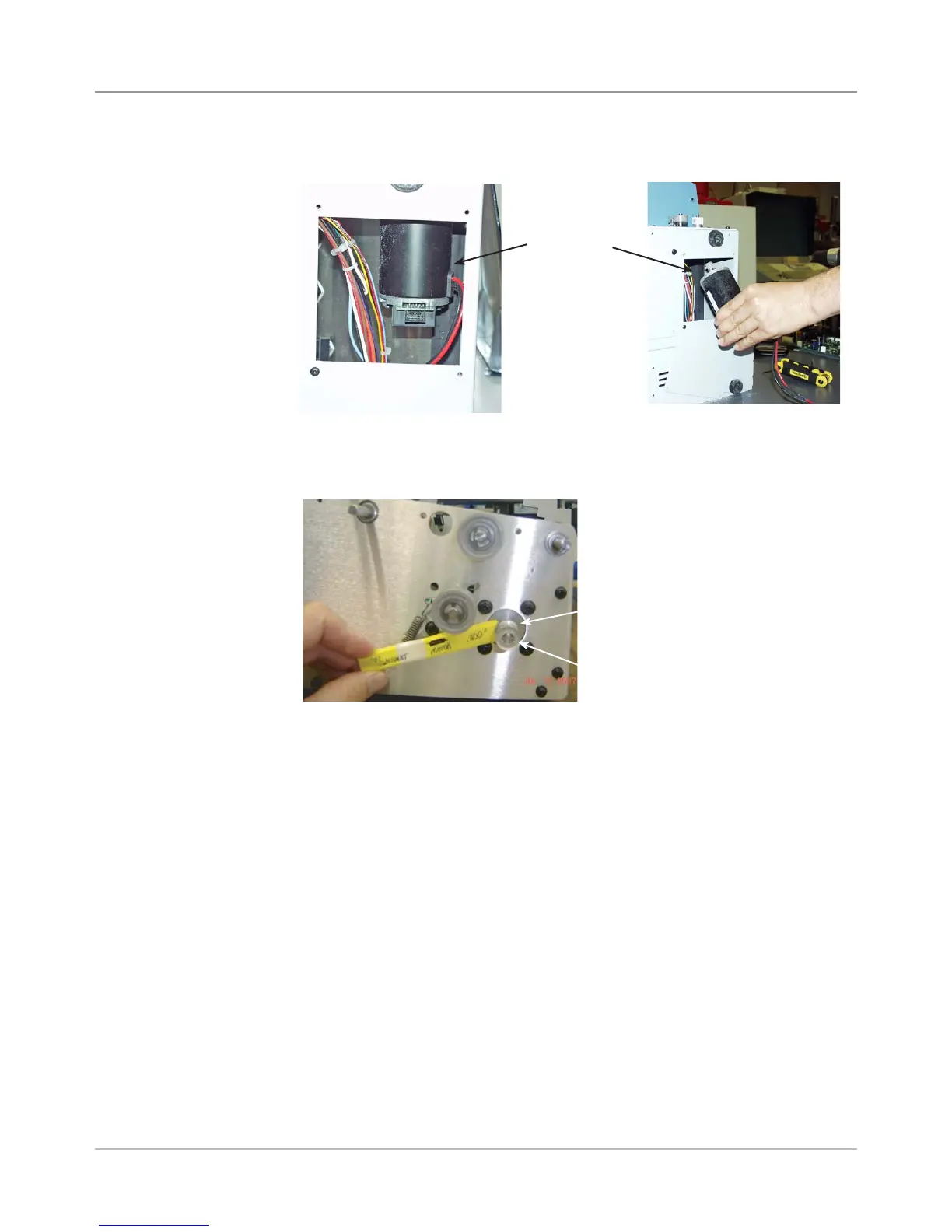

5. Carefully pull the printer motor assembly through access hole in bottom.
Transport
Motor
Assembly
in Access
Hole on
Bottom
7. Reinstall in reverse order.
6. When positioning the new motor pulley on the front plate assembly, make
sure you leave a 0.200” space between the pulley and motor face.
Pulley
Motor Face
