DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
5-31
Removal and Replacement • 5
DA80F (WF81) Parts Removal
Feed Deck
Removed

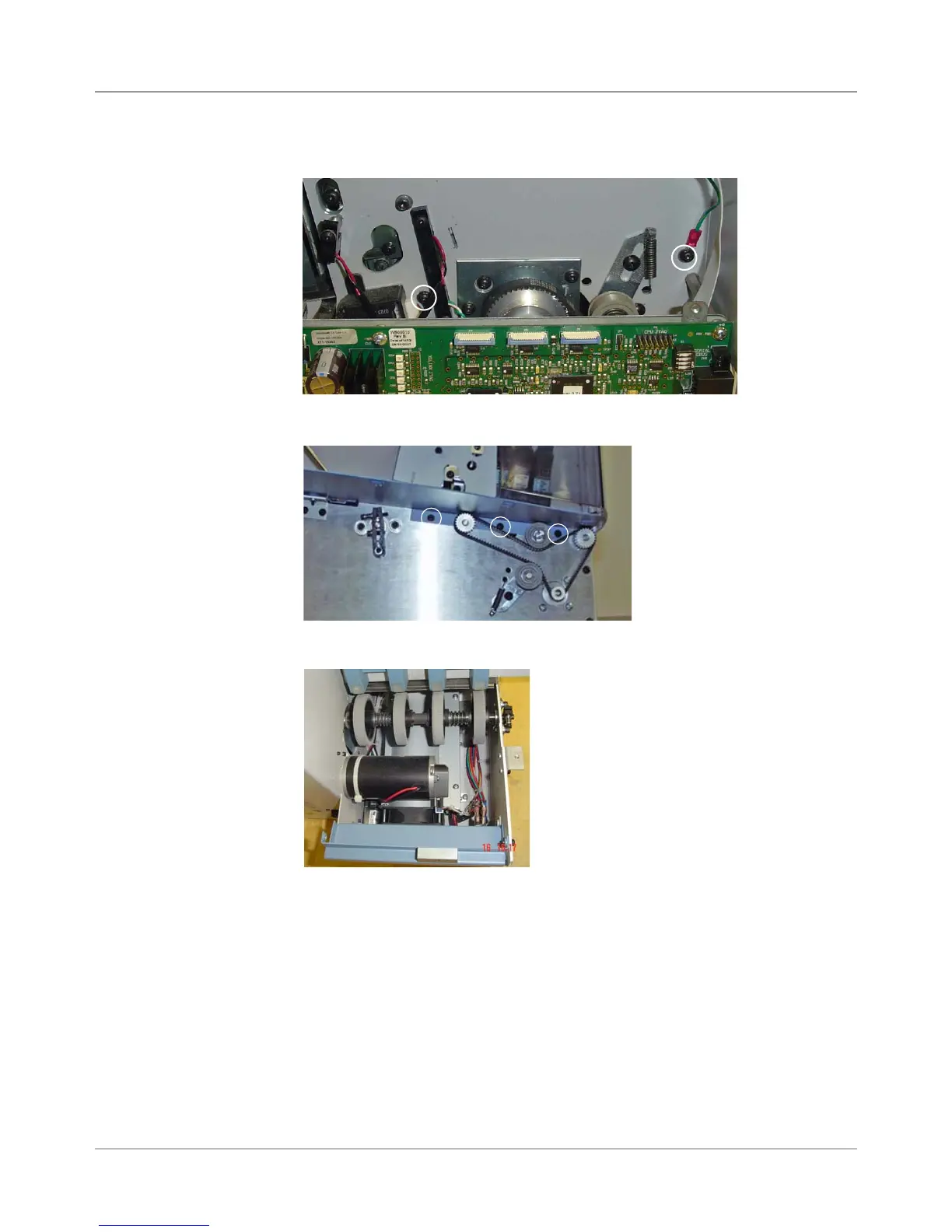

5. Remove two feed deck mounting screws on back of chassis.
Feed Deck
Mounting
Screws on
Back of
Chassis
(circled)
Feed Deck Screws
on Front Chassis
(Circled)
6. Remove three feed deck mounting screws on front of chassis.
7. Lift out feed deck.
8. Reinstall in reverse order.
5.17A Feed
Deck
(continued)
