DA80F/DA95F AddressRight™ Printers Service Manual (SV61962 Rev. A)
5-45
Removal and Replacement • 5
DA95F (WF96) - Standard Feeder (WF9S) Parts Removal
5.26 Feed
Belts and
Rollers on
Standard
Feeder
(continued)
6. Replace in reverse order.
NOTE: If upper and/or lower shafts were removed, do the following gap
adjustments below.

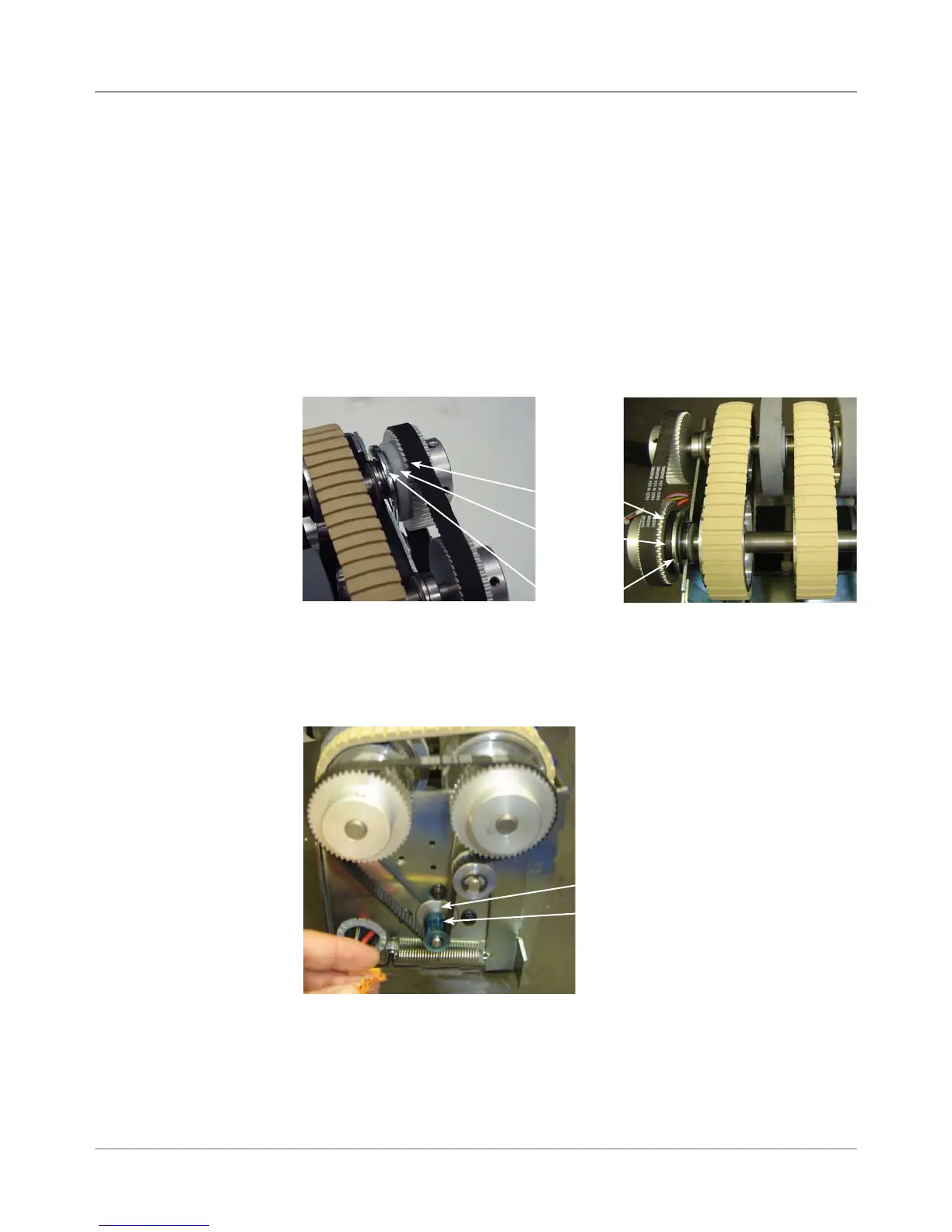

Gap Adjustment Procedures (if Pulleys have Been Removed from
Shafts)
A. Gap Between Tensioner and Pulley
Place 0.010” shim between tensioner and pulley when reinstalling upper
shaft.
Pulley
Motor Face
B. Gap Between Pulley and Motor Face
Place 0.150” shim between pulley and motor face when reinstalling the
lower drive shaft.
Tensioner
Pulley
Shim
To Next Page
