User Manual of WDAP-C7200AC/WDAP-W7200AC
-19-
Step 7. Plug the other end of the Ethernet cable into the PoE switch.
※ IEEE 802.3at PoE switch is required.

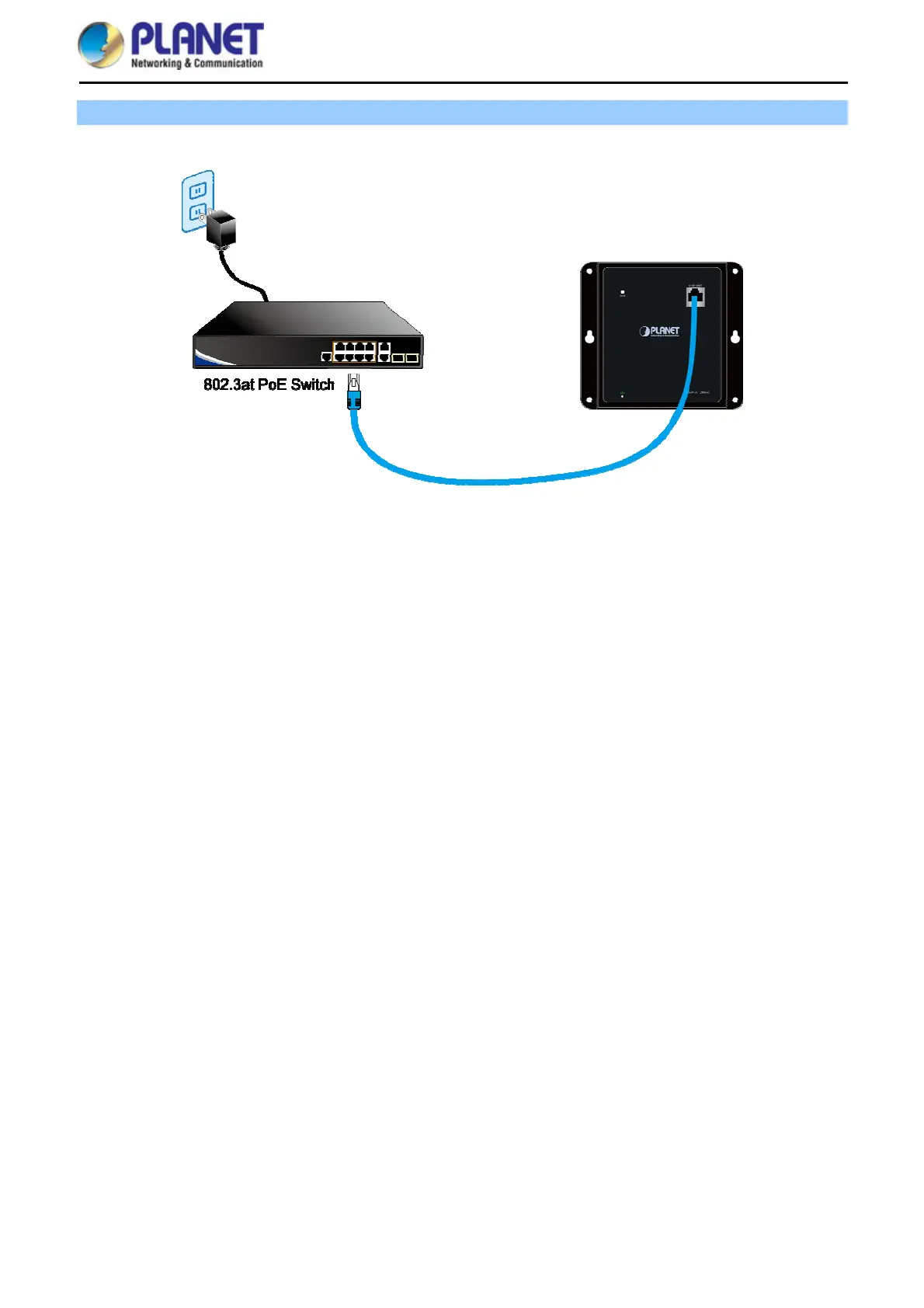

Figure 3-12 WDAP-W7200AC Installation Diagram 7
