User Manual of WDAP-C7200AC/WDAP-W7200AC
-42-

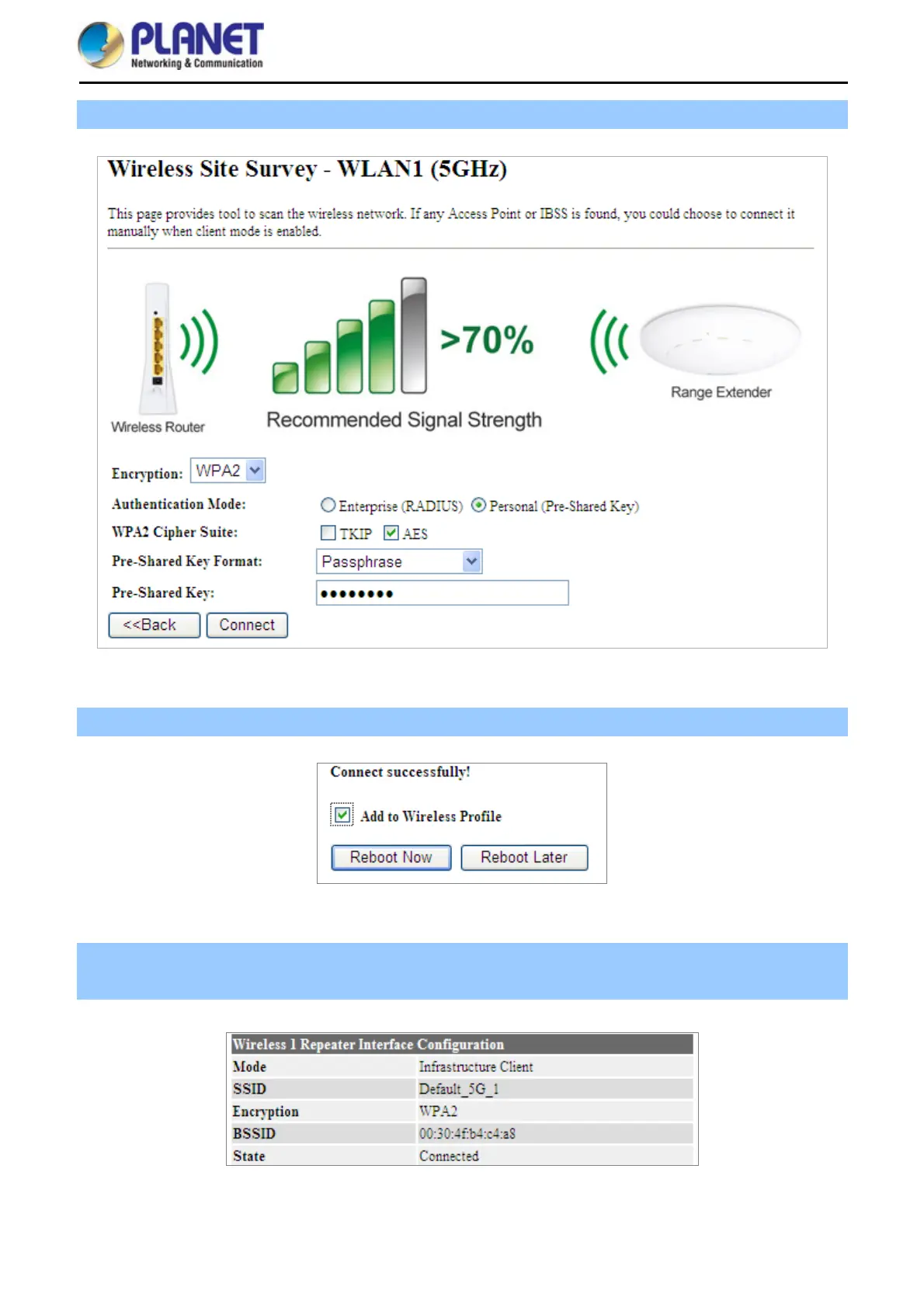

Step 3. Select the correct encryption method and enter the security key. Then, click “Connect”.
Figure 5-24 5GHz Universal Repeater-3
Step 4. Check “Add to Wireless Profile” and click “Reboot Now”.
Figure 5-25 5GHz Universal Repeater-4
Step 5. Go to “Management-> Status” page to check whether the state of Repeater interface should be
“Connected”.
Figure 5-26 5GHz Universal Repeater-5
