User Manual of WDAP-C7200AC/WDAP-W7200AC
-41-
and client simultaneously)”. Click “Apply Changes” to take effect.

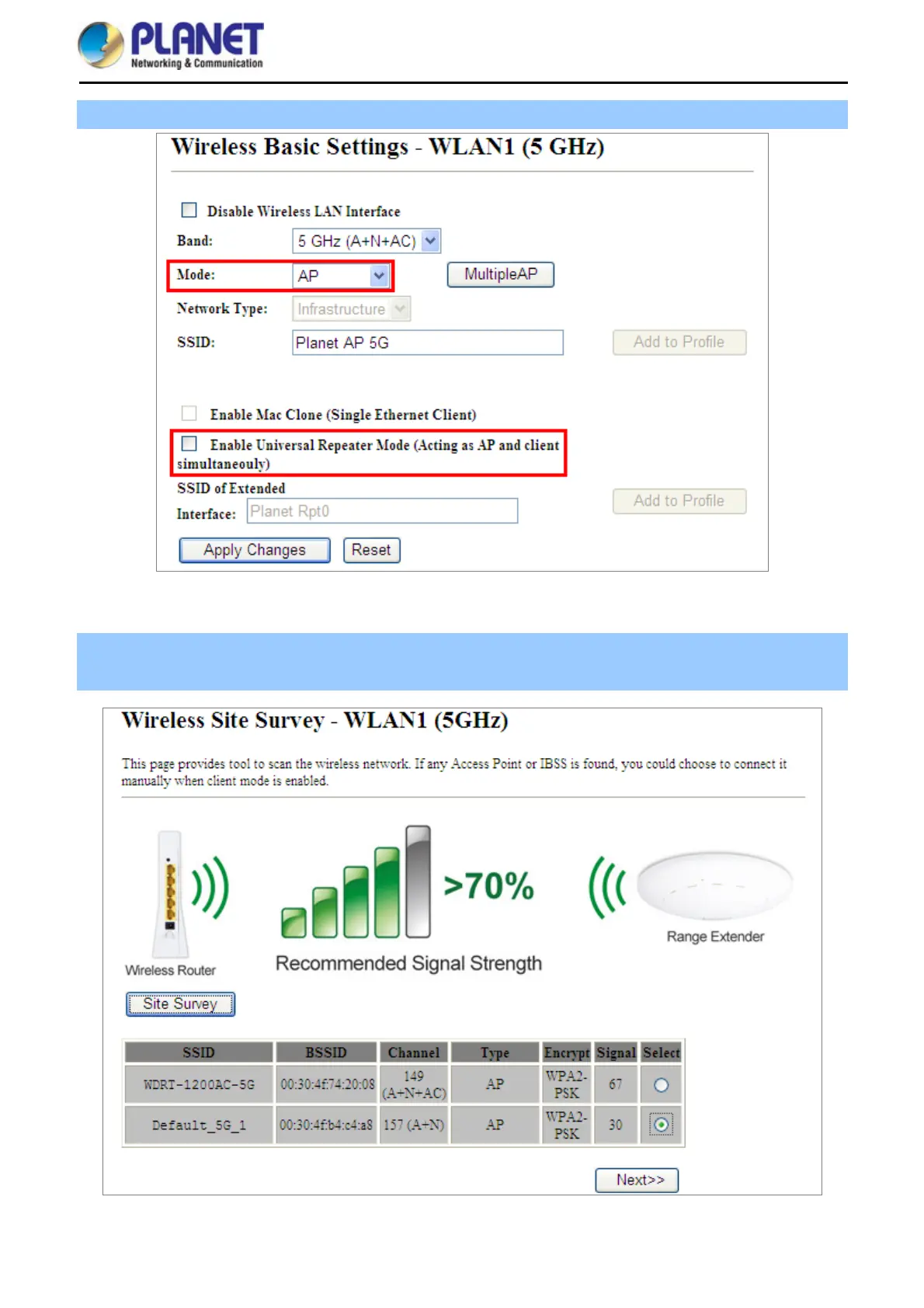

Figure 5-22 5GHz Universal Repeater-1
Step 2. Go to 5GHz Site Survey page to find the root AP. Select the root AP that you want to repeat the signal
and then click “Next”.
Figure 5-23 5GHz Universal Repeater-2
