Planet WDAP-C7200AC User Manual

User Manual of WDAP-C7200AC/WDAP-W7200AC
-22-

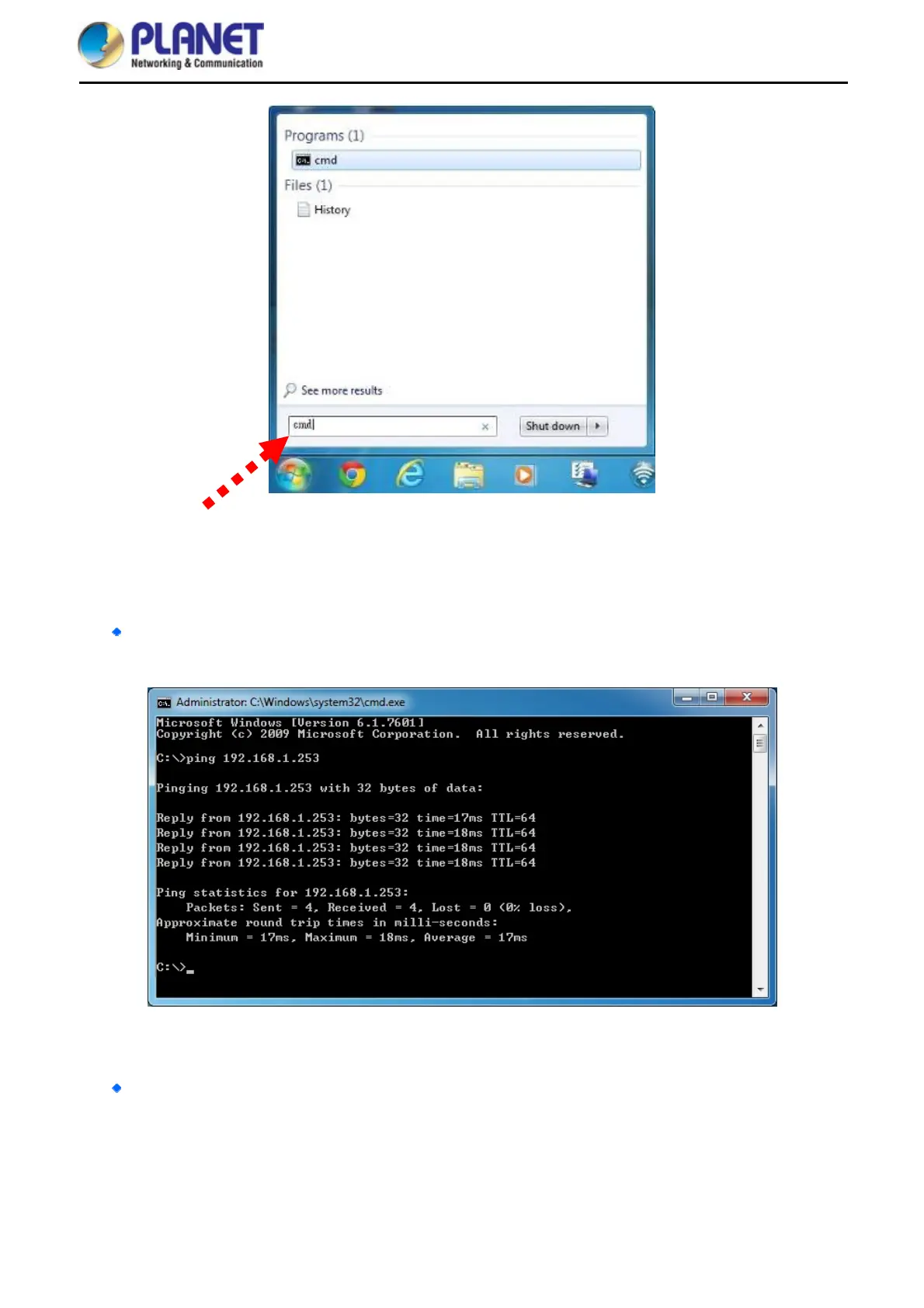

Figure 4-2 Windows Start Menu
3. Open a command prompt, type ping 192.168.1.253 and then press Enter.
If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP
has been established well.
Figure 4-3 Successful Result of Ping Command
If the result displayed is similar to Figure 4-4, it means the connection between your PC and the AP
has failed.

Planet WDAP-C7200AC Specifications

General

Brand	Planet
Model	WDAP-C7200AC
Category	Wireless Access Point
Language	English
