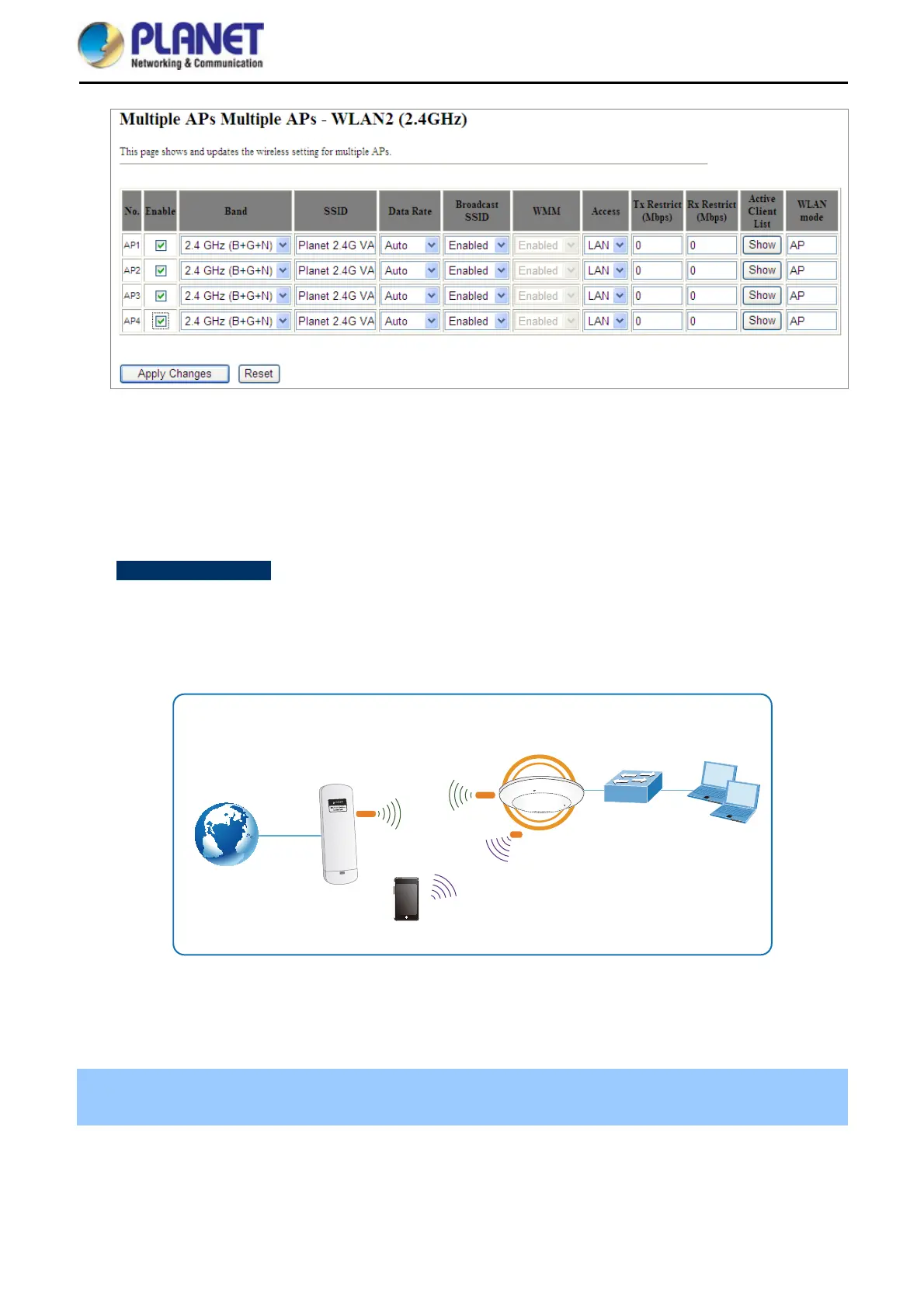

Figure 5-52 2.4GHz Multiple-SSID
Once you have applied and saved those settings, you can then go to the “WLAN1 (2.4GHz) → Security”
page on the AP to set up security settings for each of the SSIDs.
Universal Repeater
This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS
disabled. The wireless repeater relays signal between its stations and the root AP for greater wireless
range.
2. Example of how to configur
e Universal Repeater Mode. Please take the following steps:
To configure each wireless parameter, please go to the “WLAN2 (2.4GHz) → Basic Settings” page.
Step 1. Configure wireless mode to “AP” and then check “Enable Universal Repeater Mode (Acting as AP
and client simultaneously)”. Click “Apply Changes” to take effect.
and client simultaneously)”. Click “Apply Changes” to take effect.
2.4G
5G
Clients
Smart Phone
Switch
WDAP-C7200AC
AP
Internet
g/n
a/n/ac
a/n/ac
To Next Page
