User Manual of WDAP-C7200AC/WDAP-W7200AC
-50-
 AP+ WDS
Connect this wireless AP with up to 8 WDS-capable wireless APs, and connect another AP to provide
service for all wireless stations within its coverage.

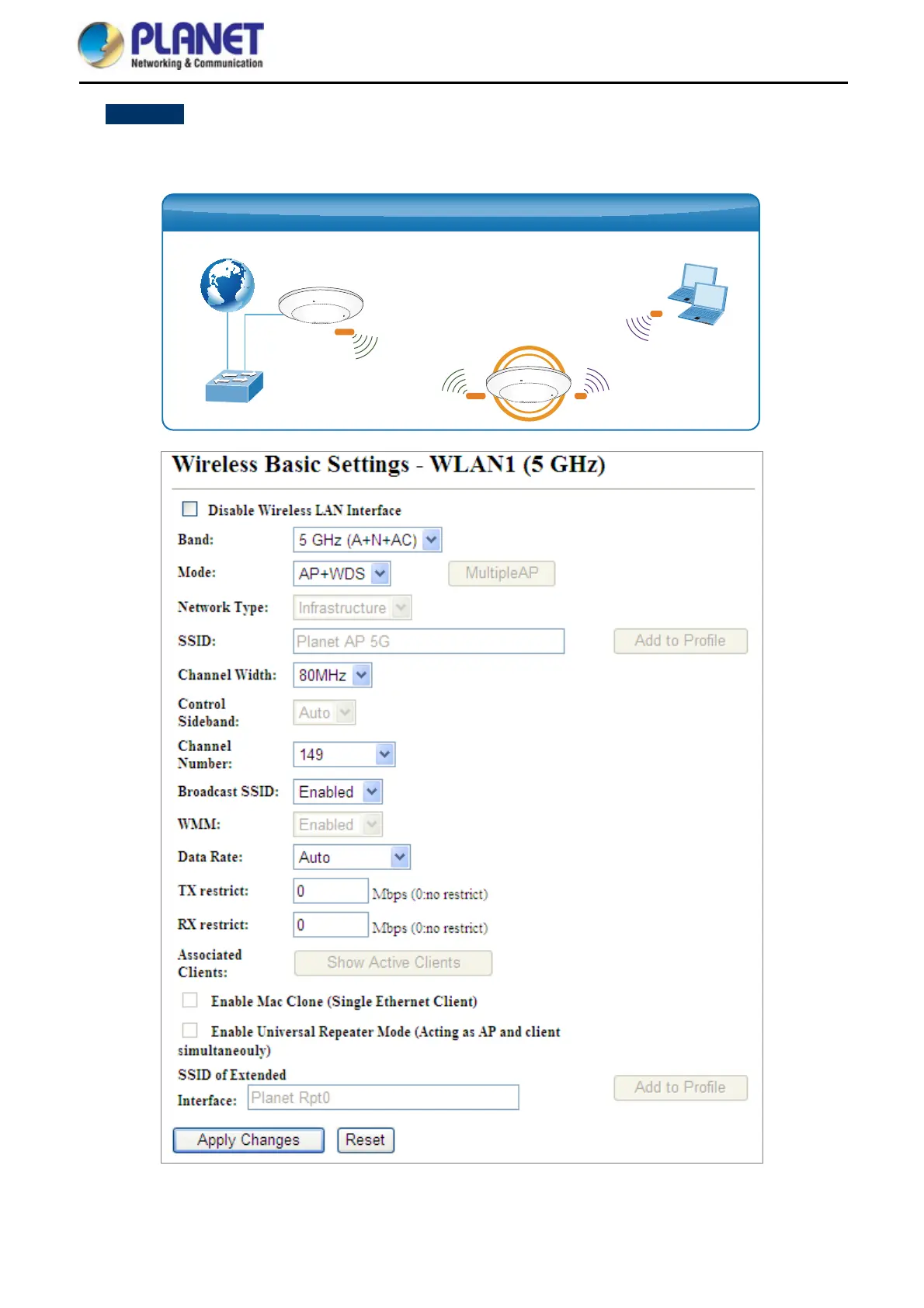

Figure 5-33 5GHz Wireless Basic Settings – WDS+AP
WDS Repeater Mode
Clients
5G WDS
2.4G
AP
Internet
WDAP-C7200AC
g/n
g/n
a/n/ac
a/n/ac
