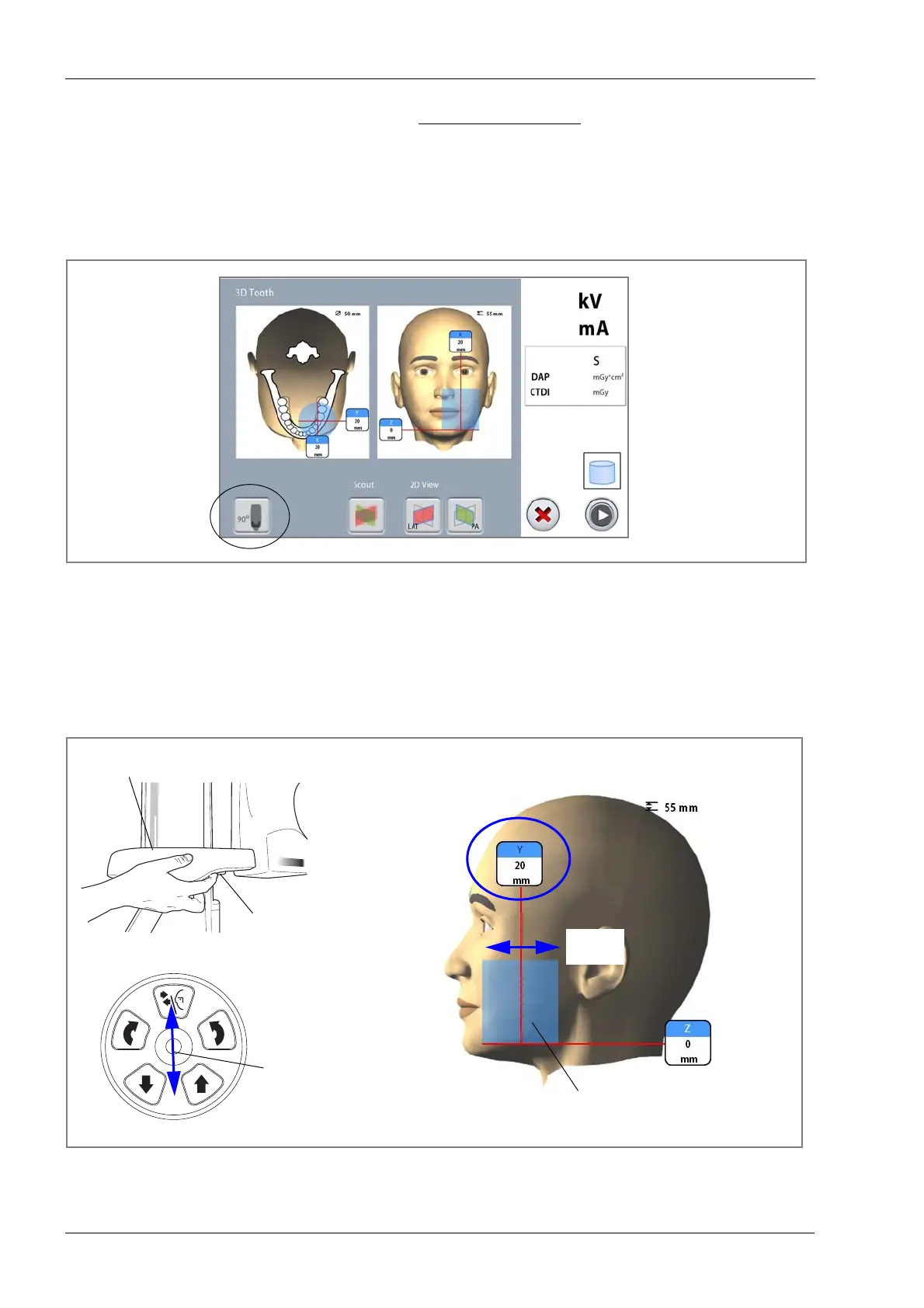

3D PATIENT EXPOSURE
32 Planmeca ProMax 3D Max with ProTouch
User’s Manual
Side light (Y laser)
First rotate the C-arm 90 degrees clockwise by touching
the 90° button at the bottom of the screen. This will give
you a better view for checking the volume position.
Touch the button again if you wish to rotate the C-arm
back to the original position.
If you need to move the image volume to the front or back
do one of the following:
• Move the thumb wheel that is located on the underside
of the patient support table.
• Move the positioning joystick towards you or away
from you.
The side light (i.e. the image volume center as seen from
the side) will move accordingly.
NOTE In skull images (Ø230 mm) the side light (Y laser)
cannot be adjusted by moving the thumb wheel.
Rotate C-arm
90 degrees
Positioning joystick
(side light = Y laser)
patposlights3.eps
Thumb wheel
Patient support table
(side light = Y laser)
OR
Front
Back
Image volume
Back
Front
