Plockmatic SR 85 - REP 2.4 Side guide assy.

Bookletmaker SR 85 February 2001PAGE
REP 2.4 Side guide assy.
REMOVAL
1. Switch off the main power switch and disconnect the power cord.
2. Remove the front and rear cover according to REP 1.1
3. Remove the infeed cover according to REP 1.4
4. Remove the infeed module according to REP 2.1
5. Remove the sideguides according to REP 2.3

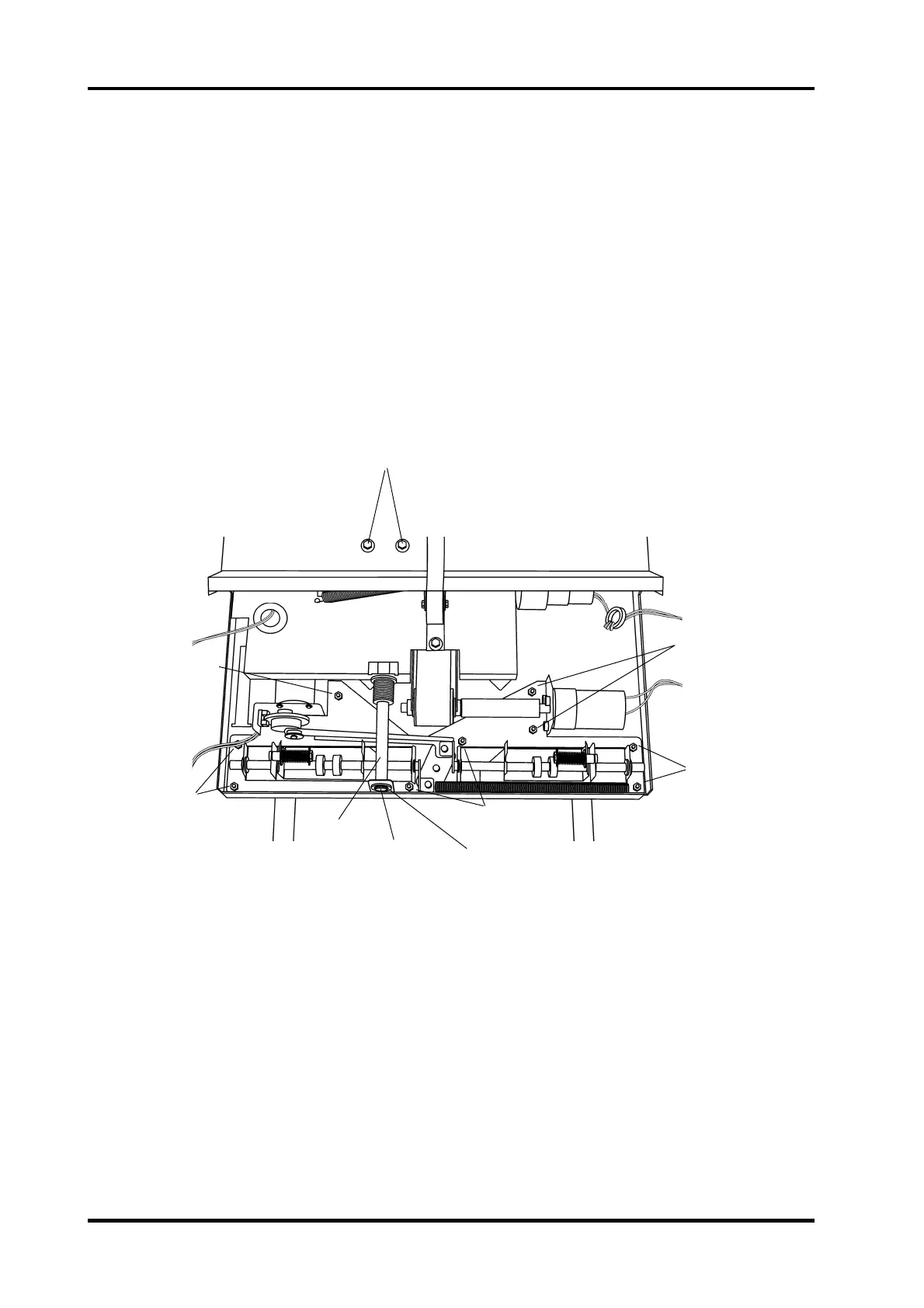

6. Turn the infeed module up side down.
7. Remove the e-clip (1).
8. Remove the two screws (2) who secures the shaft.
9. Push the shaft (3) out of the hole (4).
10. Remove five nuts (5).
11. Remove four 7 mm screws (6).
INSTALLATION
Installation is an exact reversed procedure of removal.
1
2
3
4
5
5
5
6
6
2.4.1
