Bookletmaker SR 85 February 2001PAGE
PURPOSE
The purpose is to position the Stapler motor home position switch (SW 1) so that the Sta-
pler motor (MOT 8) stops in the correct position after stapling a set.
1. Switch off the main power switch and disconnect the power cord.
2. Remove the infeed cover according to REP 1.3.
3. Rotate the motor linkage (3) to the top dead center.
ADJUSTEMENT
1. Check that the gap is 0.0 mm to 0.2 mm.
2. Loosen the two screws (1).
3. Move the switch (2) to adjust.
4. Tighten the two screws (1).

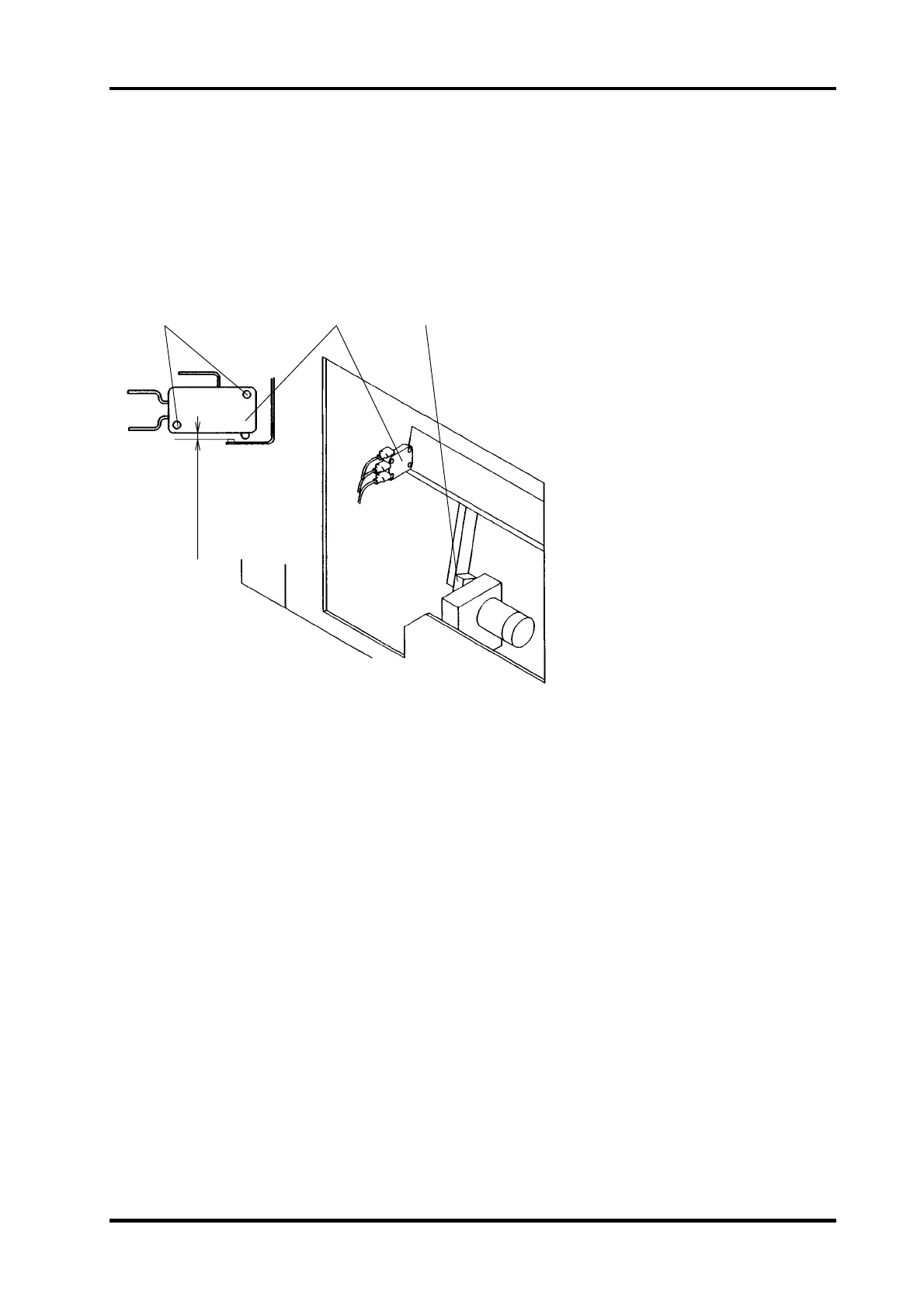

REP 3.5 Stapler home position, adjustment SW 1
0.0 - 0.2 mm
123
3.5.1
