Bookletmaker SR 85 February 2001PAGE
PURPOSE
The purpose is to ensure that the Fold knife is clear from the paper path in home position.
1. Visually check that the Fold knife is not visible above the paper path.
2. Switch of the main power switch and disconnect the power cord.
3. Remove the outfeed cover according to REP 1.3.
4. Rotate linkage (4) to the down dead center.
ADJUSTMENT
1. Check that the gap (3) between the switch housing and the actuator arm is
0.1 mm to 0.5 mm.
2. Loosen the two screws (1).
3. Move the switch (2) to adjust.
4. Tighten the two screws (1).

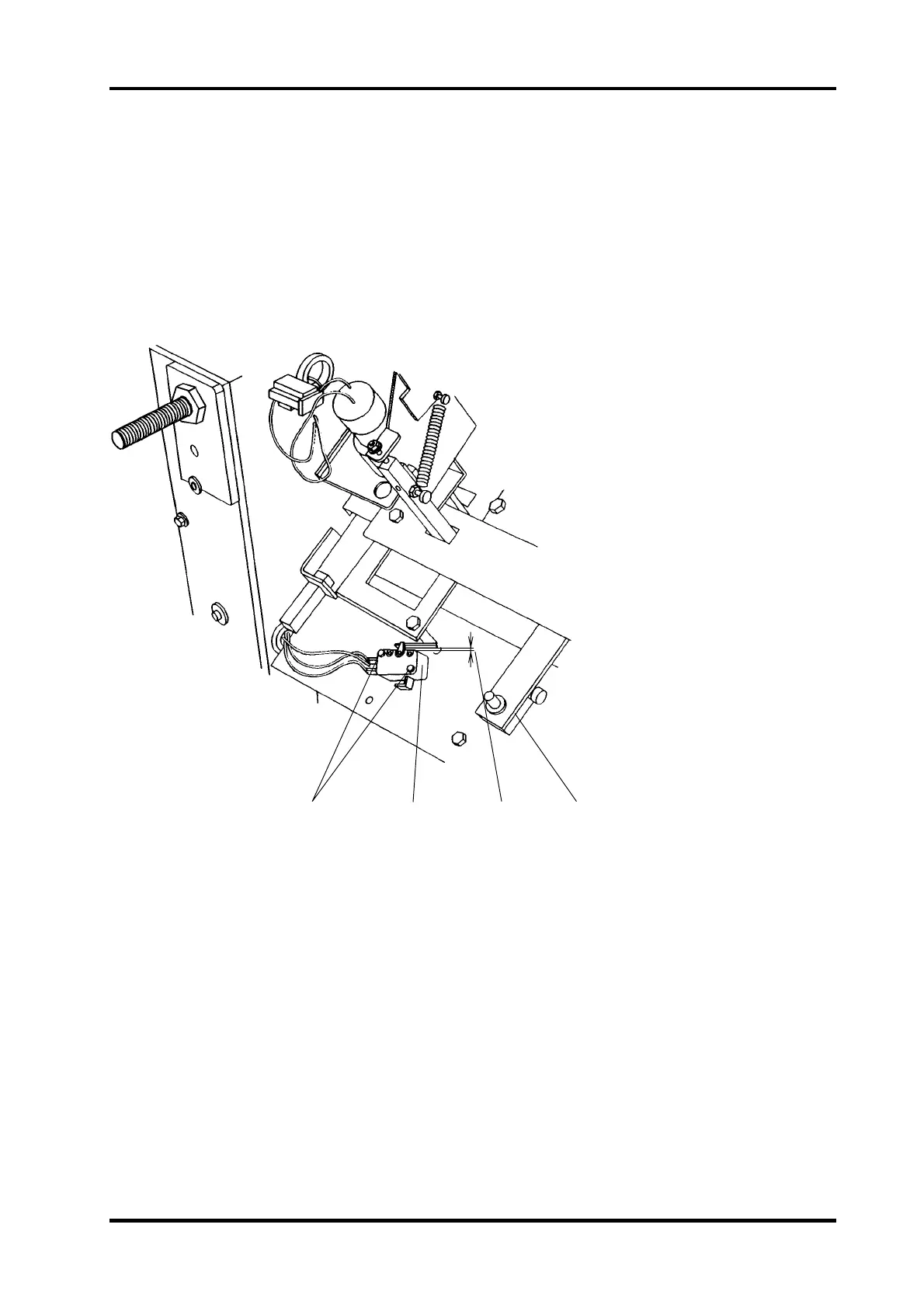

REP 4.4 Fold knife home position, adjustment SW 2
SHOWN IN TIPPED POSITION FOR CLARITY
12
34
4.4.1
