Bookletmaker SR 85 February 2001PAGE
PURPOSE
The purpose is to ensure adequate engagement of the stapled set drive rollers.
1. Check/adjust the Pressure roller height according to REP 5.6.
2. Adjust to the smallest sheet size on the control panel.
3. Switch off the main power switch and disconnect the power cord.
4. Remove the infeed cover according to REP 1.3.
REP 5.7 Stapled set stop gate release solenoid, adjustment SOL 1
ADJUSTMENT
1. Measure the hight (1).
2. Push and hold the plunger (3) up.
NOTE: Push on the plunger of the solenoid only, do not push on the linkage. If pushing on
linkage the measurement will not be correct.
3. Measure the hight (1) again. The difference should be 0.5 mm to 1.0 mm
4. Loosen the two screws (2) and move the solenoid to obtain the dimension.
5. Tighten the screws.

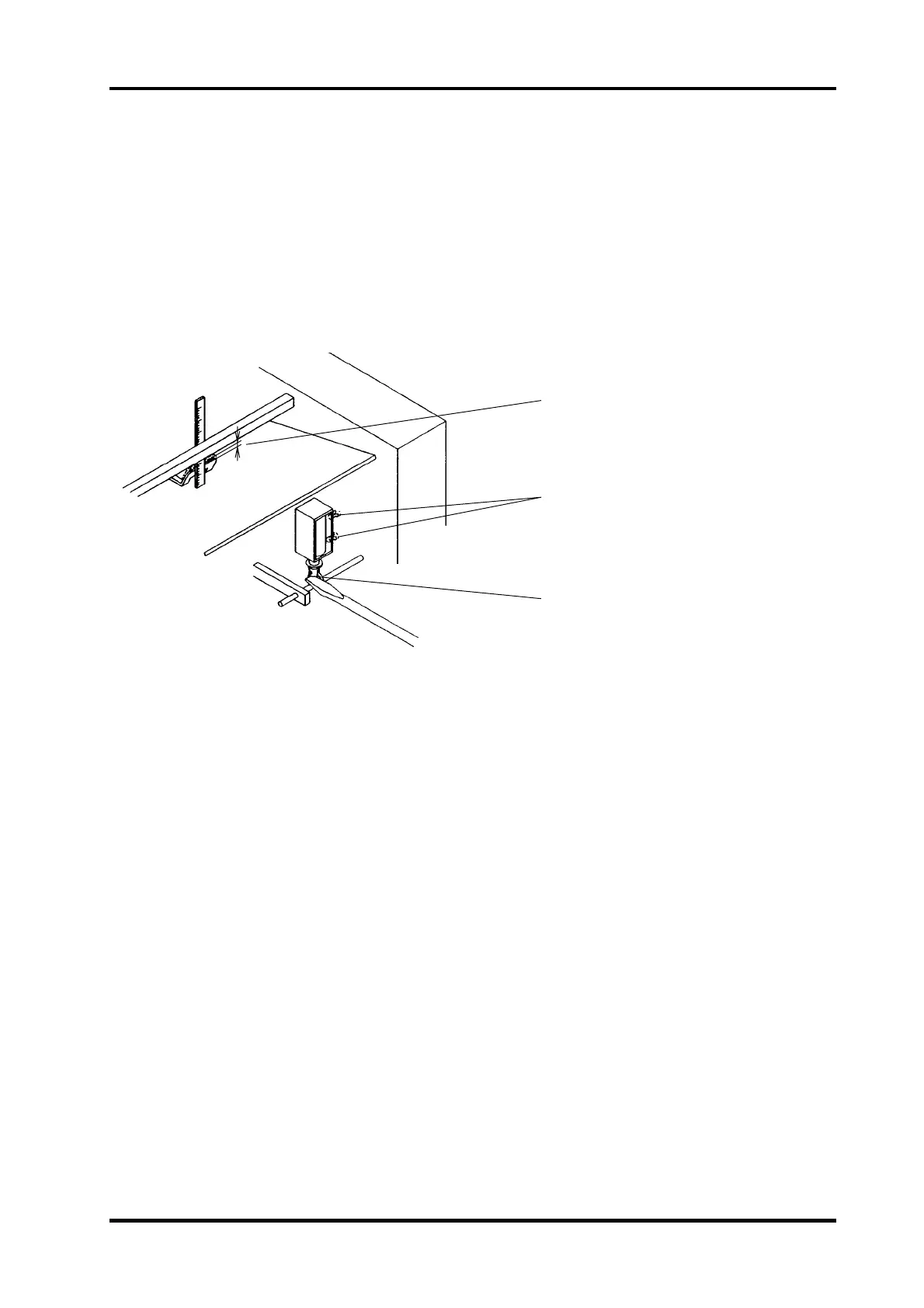

VIEW SHOWN WITH INFEED MODULE
REMOVED FOR CLARITY
1
2
3
5.7.1
