PURPOSE
The purpose is to position the Outfeed sensor (SEN 4) so that it will switch on the Stacker
motor (MOT 1) when a set enters the stacker tray.
1. Remove the rear cover according to REP 1.1 and pull out the interlock bypass switch
actuator.
ADJUSTMENT
1. The voltage between TP8 on the controller PCB and common ground should be greater
than 2.2 VDC with the sensor blocked and less than 0.9 VDC unblocked.
NOTE: Use white paper to block the sensor.
2. Loosen the nut (2).
3. Move the bracket (1) to obtain the voltages.
4. Tighten the nut (2).

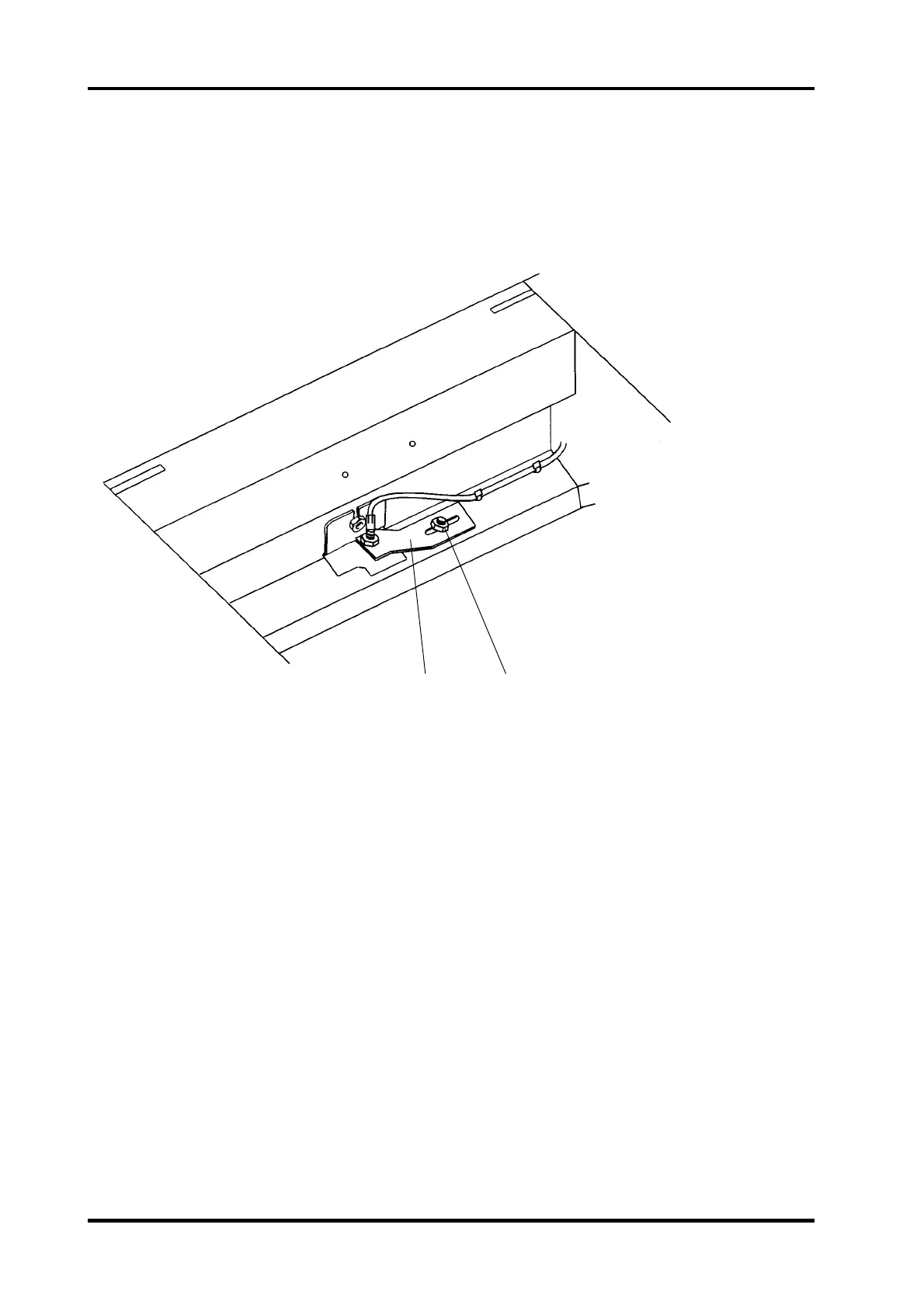

REP 4.5 Outfeed sensor, adjustment SEN 4
VIEW INSIDE THE TOP COVER
OVER THE FOLDER ROLLS
4.5.1
