Plockmatic SR 85 - REP 2.5 Side guide jogger motor MOT 3

Bookletmaker SR 85 February 2001PAGE
REP 2.5 Side guide jogger motor MOT 3
REMOVAL
1. Switch off the main power switch and disconnect the power cord.
2. Remove the front and rear cover according to REP 1.1
3. Remove the infeed cover according to REP 1.4
4. Remove the infeed module according to REP 2.1

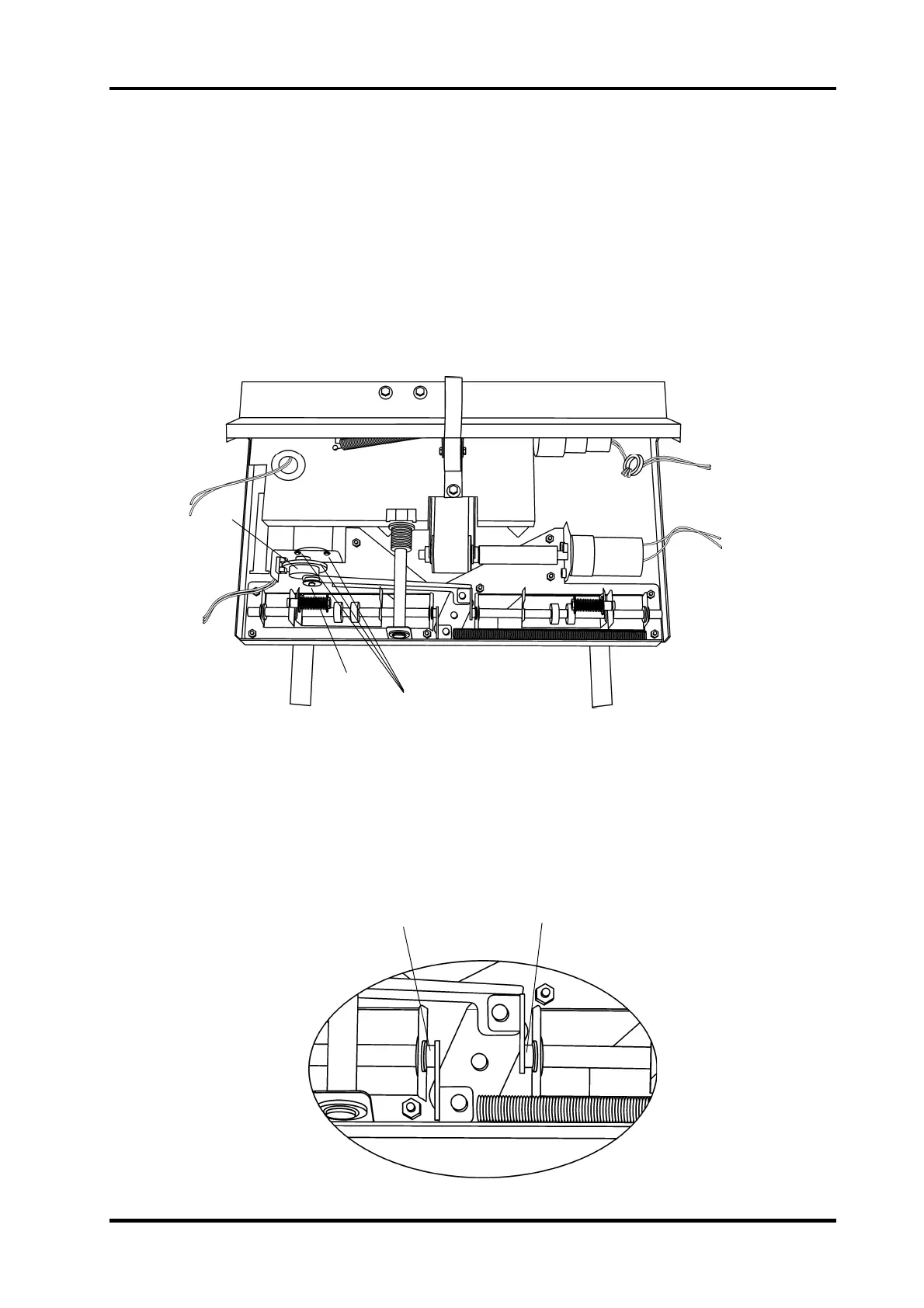

5. Turn the infeed module up side down.
6. Remove 7 mm screw (1).
7. Remove wheel (2) by loosen one 4 mm allen screw.
8. Remove three 7 mm screws (3).
9. Cut two tie raps and remove the motor.
2.5.1
1
3
2
INSTALLATION
Installation is an exact reversed procedure of removal. But before you tighteen the three
screws, you must put the side joggers in the out position, look at the picture above. You
should have 0.1-0.3 mm play between the plate and the flange bushing on both sides (1).
Tighteen the three screws.
1
1
