Bookletmaker SR 85 February 2001PAGE
PURPOSE
The purpose is to ensure that adequate pressure is applied to the Stapler heads when
forming the staples.
1. Switch off the main power switch and disconnect the power cord.
2. Remove the Infeed cover according to REP 1.3.
3. Remove the Stapler head according to REP 3.1.
4. Rotate the motor linkage (3) to the down dead center.
ADJUSTMENT

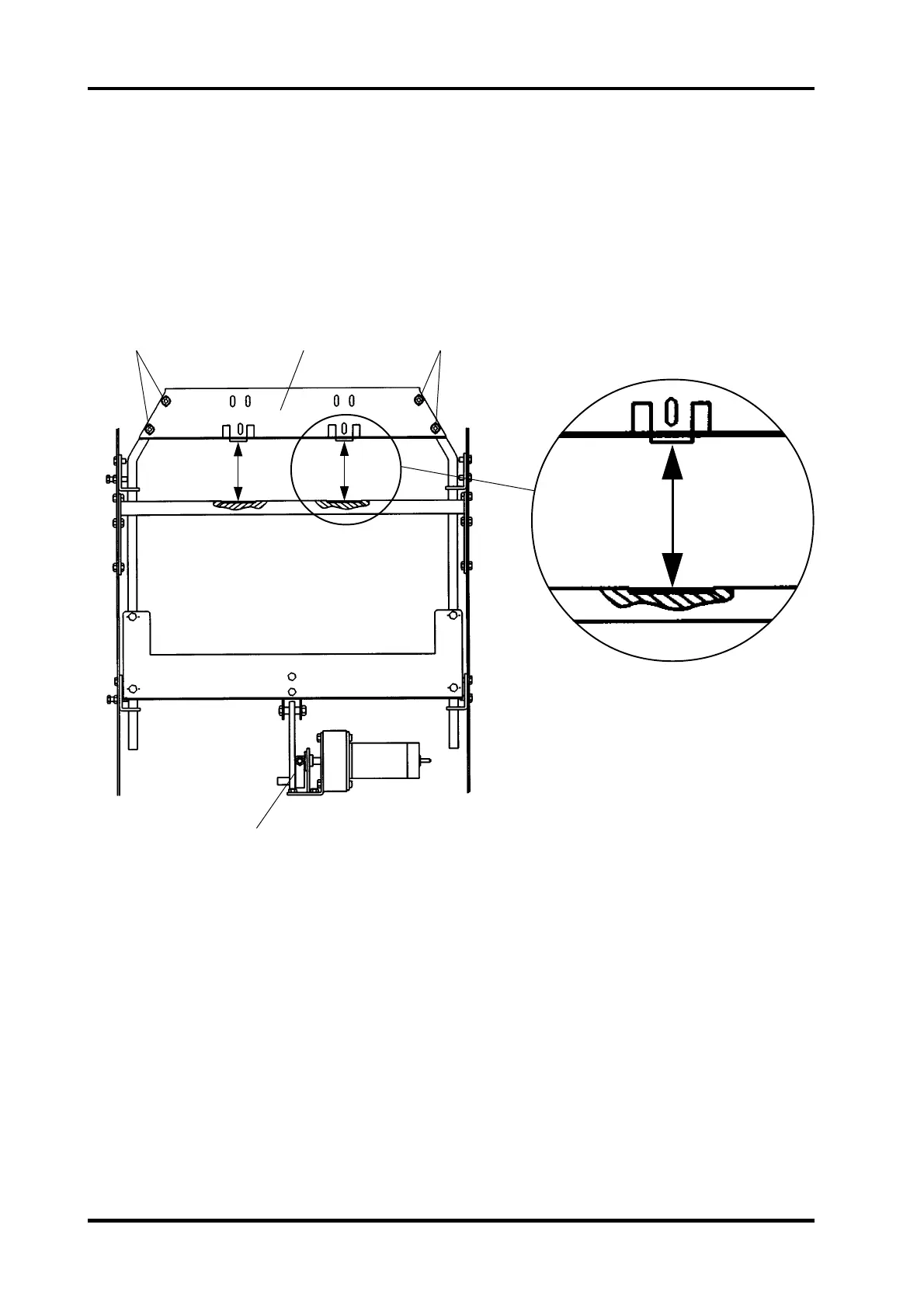

1. Use a sliding caliper and check that the distance between the anvil and the upper side
of the sheet plate is 70 mm to 71 mm.
Check both front and rear side.
2. Loosen the four screws (1).
3. Move the upper stapler bar (2) to adjust.
4. Tighten the screws (1).
5. Check/Adjust the Stapler assembly drive bar position according to REP 3.4.
REP 5.4 Stapler pressure, adjustment
1
1
2
3
5.4.1
70 to 71 mm
