Bookletmaker SR 85 February 2001PAGE
11. Reinstall the Stapler head only on the pivot pin side not in the plunger retraction swing
arm (7).

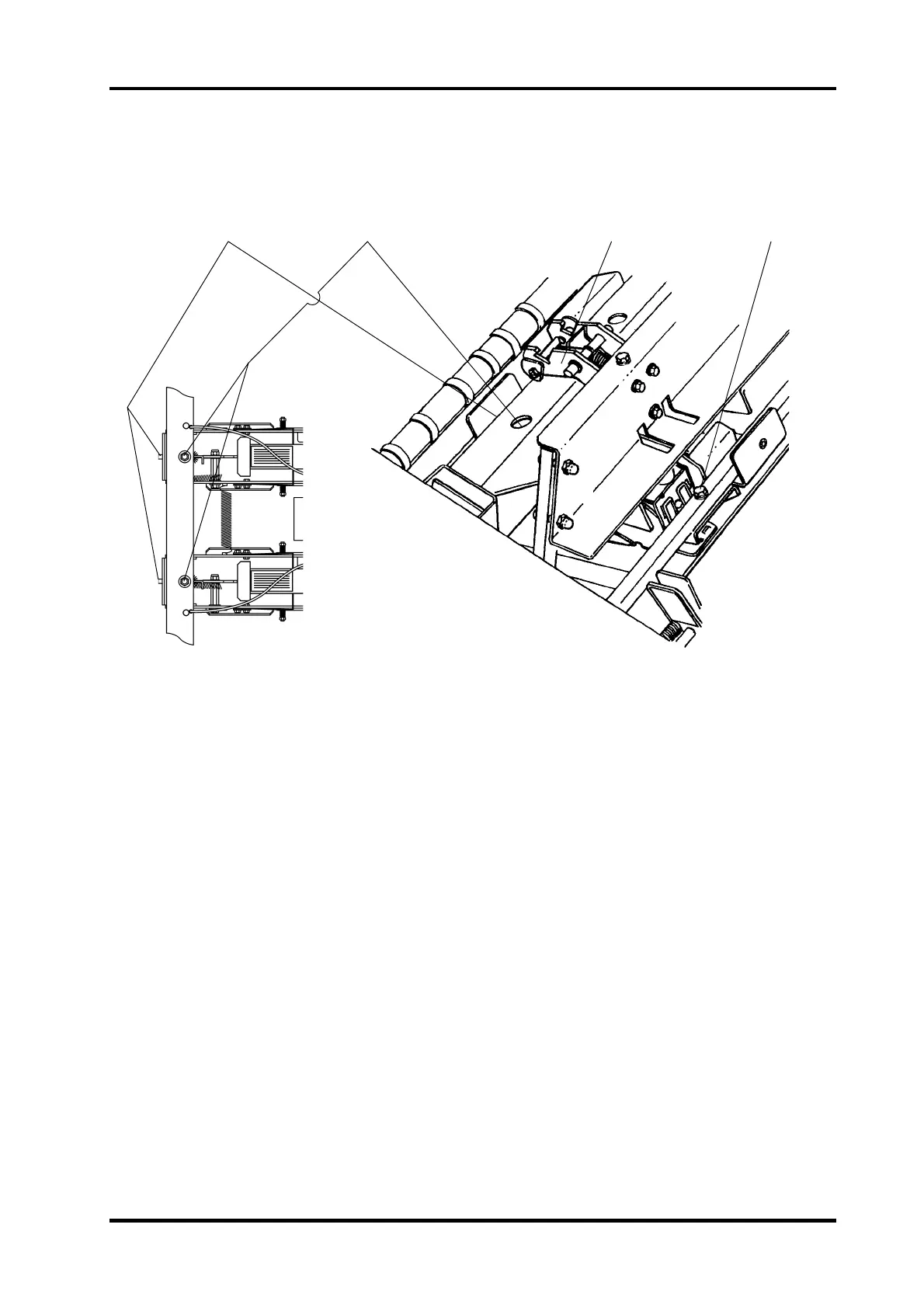

ADJUSTMENT
1. Loosen the left (6) and the right (8) mounting screw.
2. Rotate the adjusting screw (5) counterclockwise as far as it will go without removing it.
3. Push down the Stapler head and move it by turning the adjustment screw (5) clockwise
until the tool engages the slot in the anvil.
4. Tighten the left mounting screw (6).
5. Position the Stapler head so that the Alignment tool is centered (side to side) in the slot.
6. Tighten the right mounting screw (8).
7. Return the machine to operational condition.
8. Run a test set to verify the adjustment.
Continue REP 5.3 Stapler position to anvil, adjustment
5.3.2
56 7 8
