Bookletmaker SR 85 February 2001PAGE
PURPOSE
The purpose is to position the saddle stapling sensor (SEN 1) so that it will switch on the
stapler motor (MOT 8) when a set reaches the Staple stop gate.
1. Remove the rear cover according to REP 1.1 and pull out the interlock bypass switch
actuator.

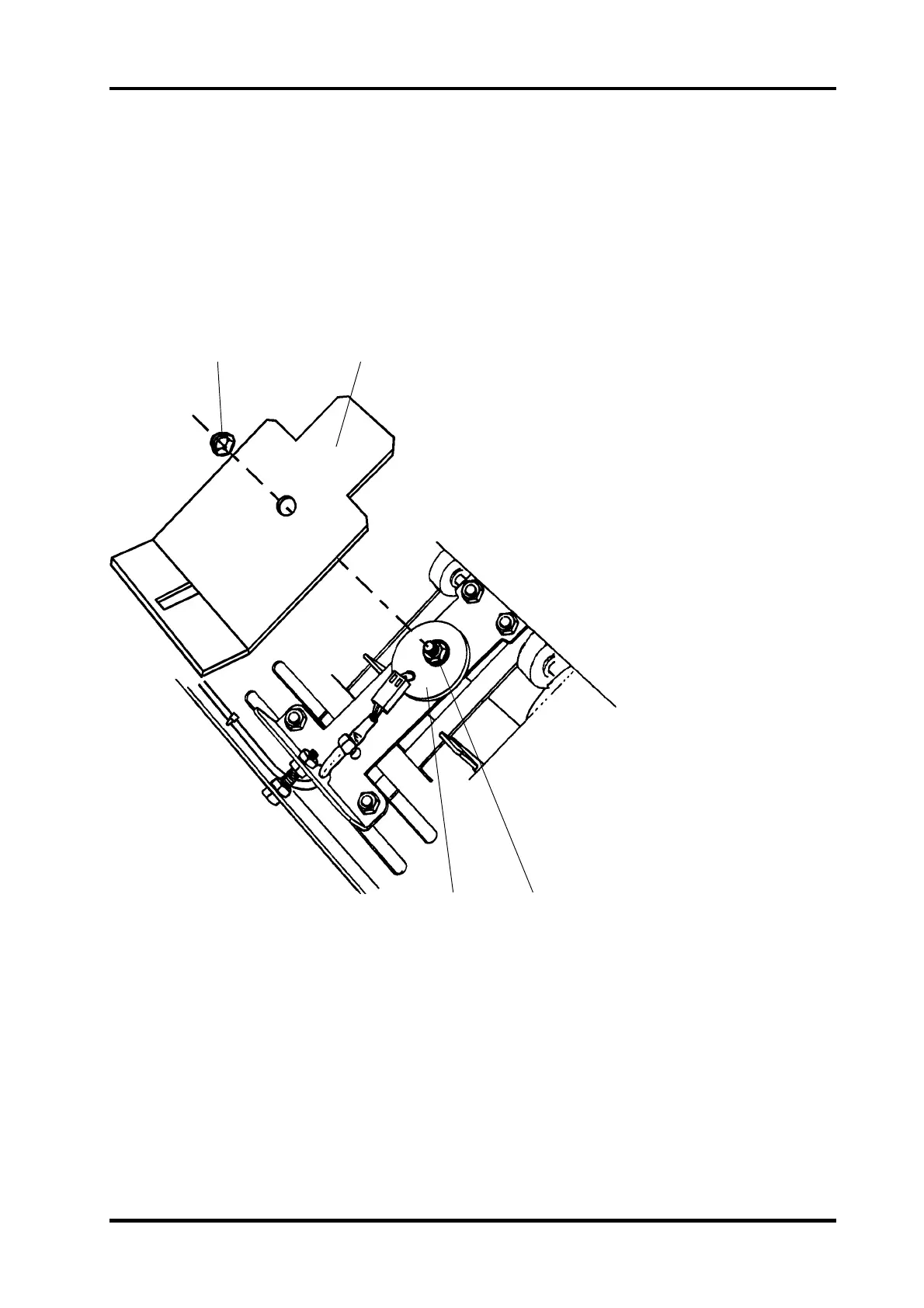

2. Remove the nut (1).
3. Remove the black shield (2).
ADJUSTMENT
1. The voltage between TP1 on the controller PCB and common ground should be greater
than 2.2 VDC with the sensor blocked and less than 0.9 VDC unblocked.
NOTE: Use white paper to block the sensor.
2. Loosen the nut (4).
3. Move the sensor (3) to obtain the voltages.
4. Tighten the nut (4).
REP 3.7 Saddle stapling sensor, adjustment SEN 1
34
21
3.7.1
