Plockmatic SR 85 - REP 3.6 Stapler head retraction, adjustment

Bookletmaker SR 85 February 2001PAGE
1.0 - 2.0 mm
12 3
PURPOSE
The purpose is to ensure the staple feed.
1. Check/adjust the Stapler home position according to REP 3.5.
2. Switch off the main power switch and disconnect the power cord.
ADJUSTMENT

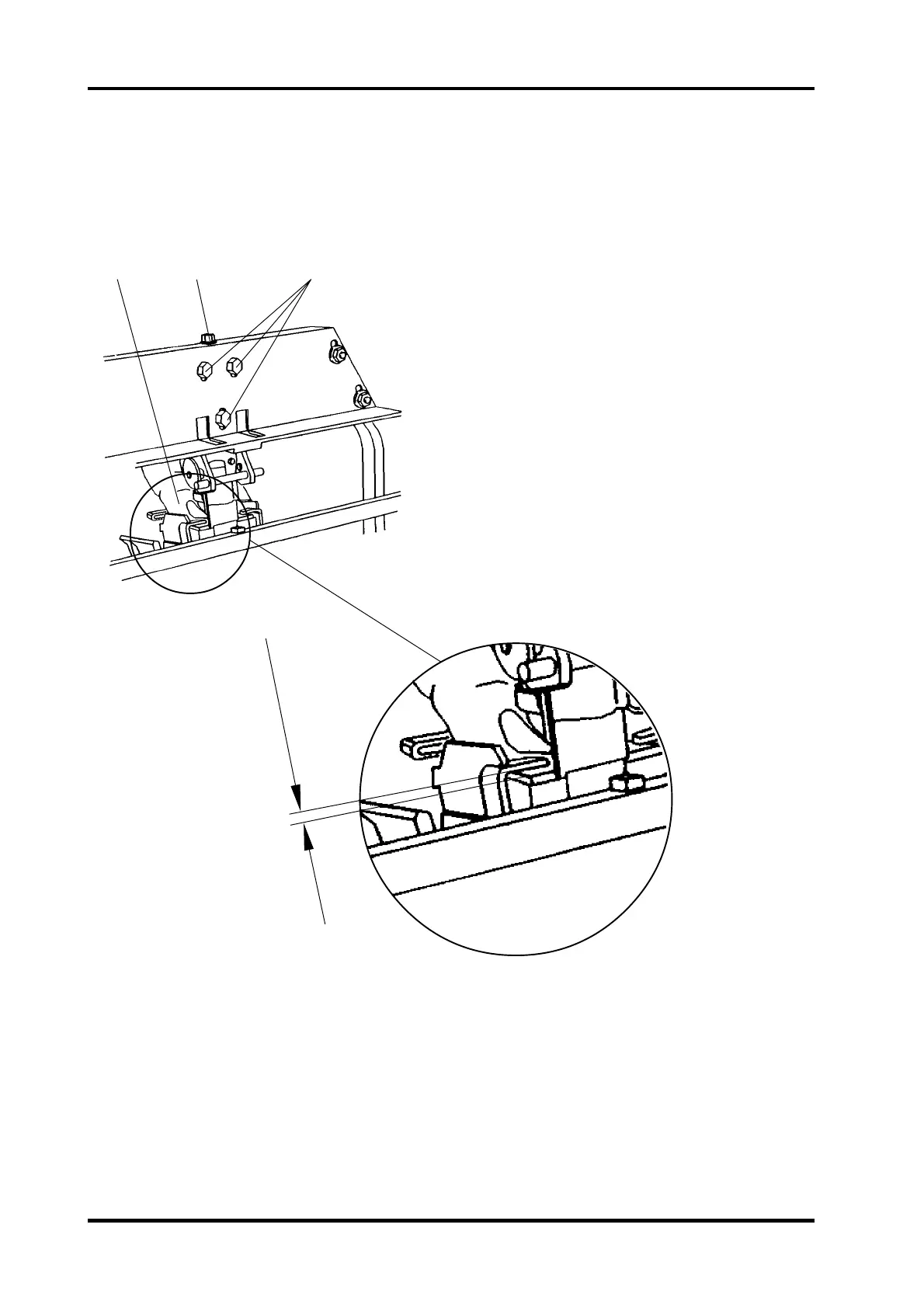

1. Push down the stapler head (1).
2. Check that the gap is 1.0 to 2.0 mm.
3. Loosen the three screws (3).
4. Rotate the screw (2) to adjust.
5. Tighten the three screws (3).
REP 3.6 Stapler head retraction, adjustment
3.6.1
