Plockmatic SR 85 - REP 3.1 Stapler head

Bookletmaker SR 85 February 2001PAGE

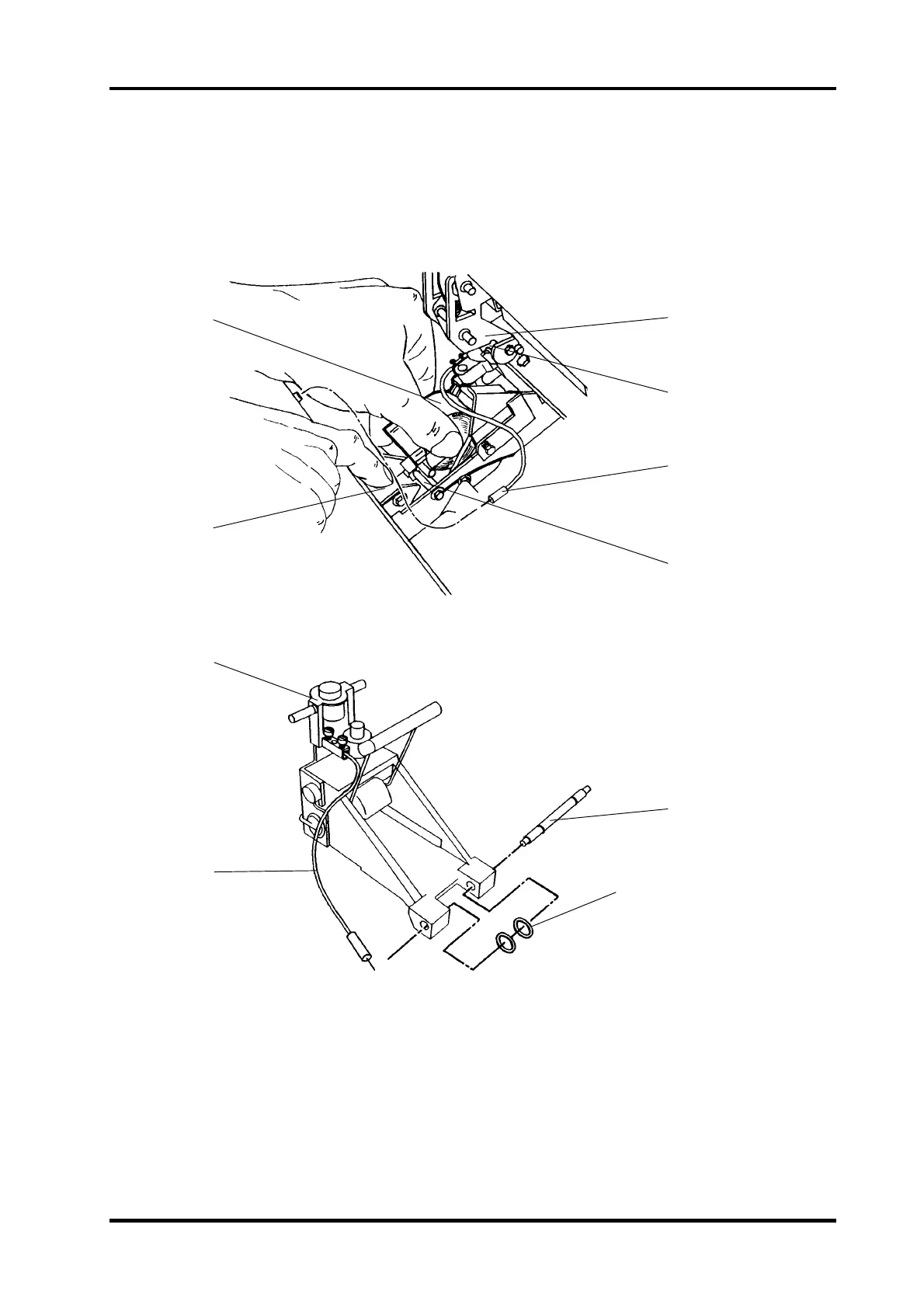

REMOVAL
1. Switch off the main power switch and disconnect the power cord.
2. Disconnect the staple detection lead (5).
3. Push down latch (2) and lift the stapler head (1) out.
NOTE: If removing the stapler head use the pivot pin (6) from the old stapler head and install it in the
new head.
INSTALLATION
1. Install the plunger (4) in the plunger retraction swing arm (3).
2. Push the Stapler head down so that the pivot pin (6) locks under the latch (2).
3. Connect the staple detection lead (1).
REP 3.1 Stapler head
3
4
1
2
5
4
5
6
6
O-Rings
3.1.1
