Polaris RZR Pro R 2022 Service Manual

7
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
7.15

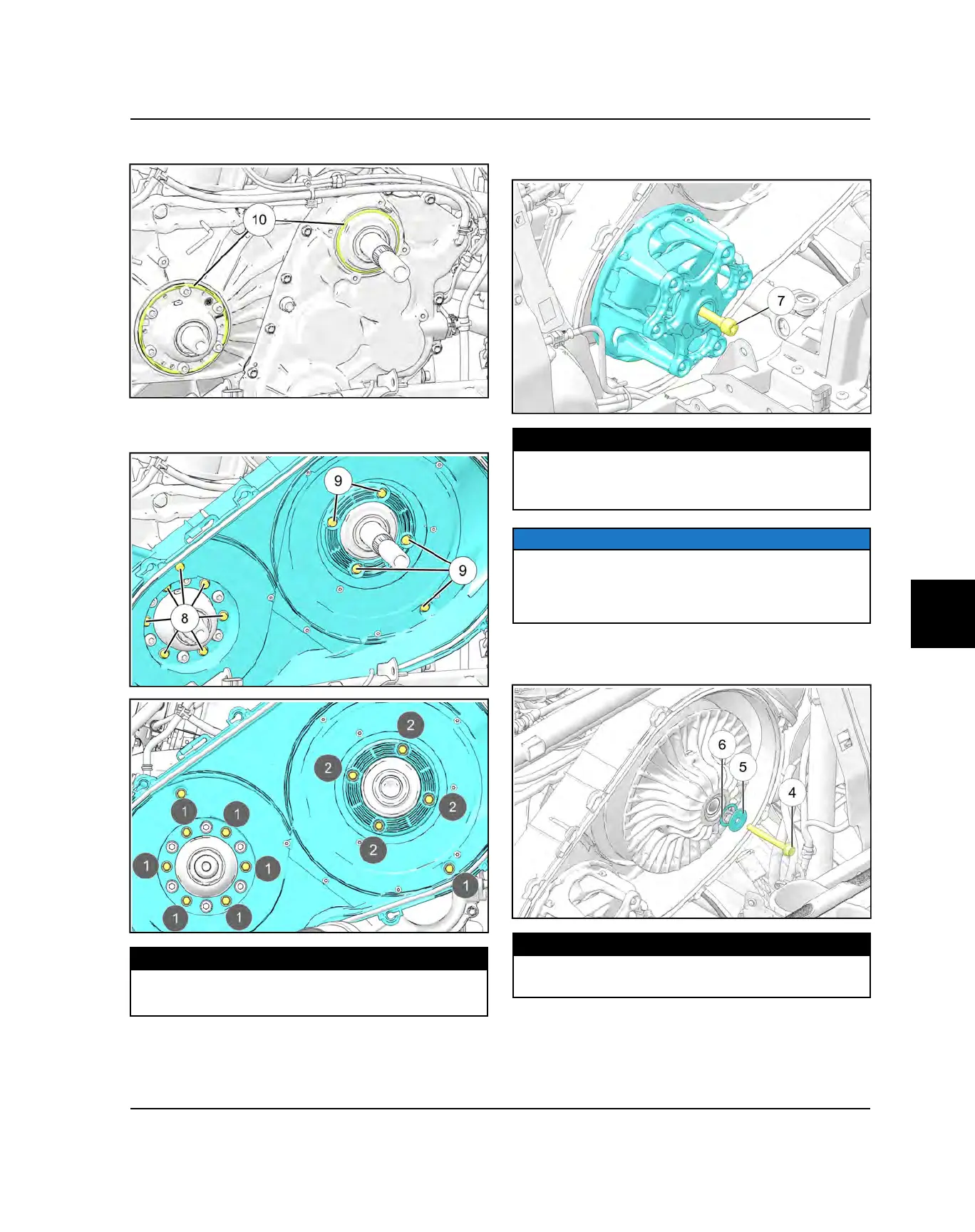

22.Install two O-rings
a
onto the transmission.
23.Install inner clutch cover and inner clutch cover
fasteners
i
and
o
. Torque fasteners to specification.
TORQUE
Inner PVT Cover Fasteners:
qq
: 11 ft-lbs (15 Nm)
ww
: 35 in-lbs (4 Nm)
24.Install drive clutch stationary sheave.
25.Install drive clutch moveable sheave and drive clutch
retaining bolt
u
. Torque fastener to specification.
TORQUE
Drive Clutch Retaining Bolt:
Step 1: 140 ft-lbs (190 Nm)Step 2: Loosen two full
turns (720°)Step 3: 118 ft-lbs (160 Nm)
NOTICE
When drive clutch is fully installed, the spring coupler
between the engine and drive clutch may allow up to
approximately 30 degrees of free rotation when turning
clutch by hand. This rotation range is normal.
26.Install driven clutch, bolt
r
, spacer
t
, and washer
y
. Torque fastener to specification.
TORQUE
Driven Clutch Retaining Bolt:
55 ft-lbs (75 Nm)
27.Install the drive belt.
TRANSMISSION
