Installation
The following procedure outlines the steps required to connect power to the analyzer. The main
cabinet should be open with access to the interior:

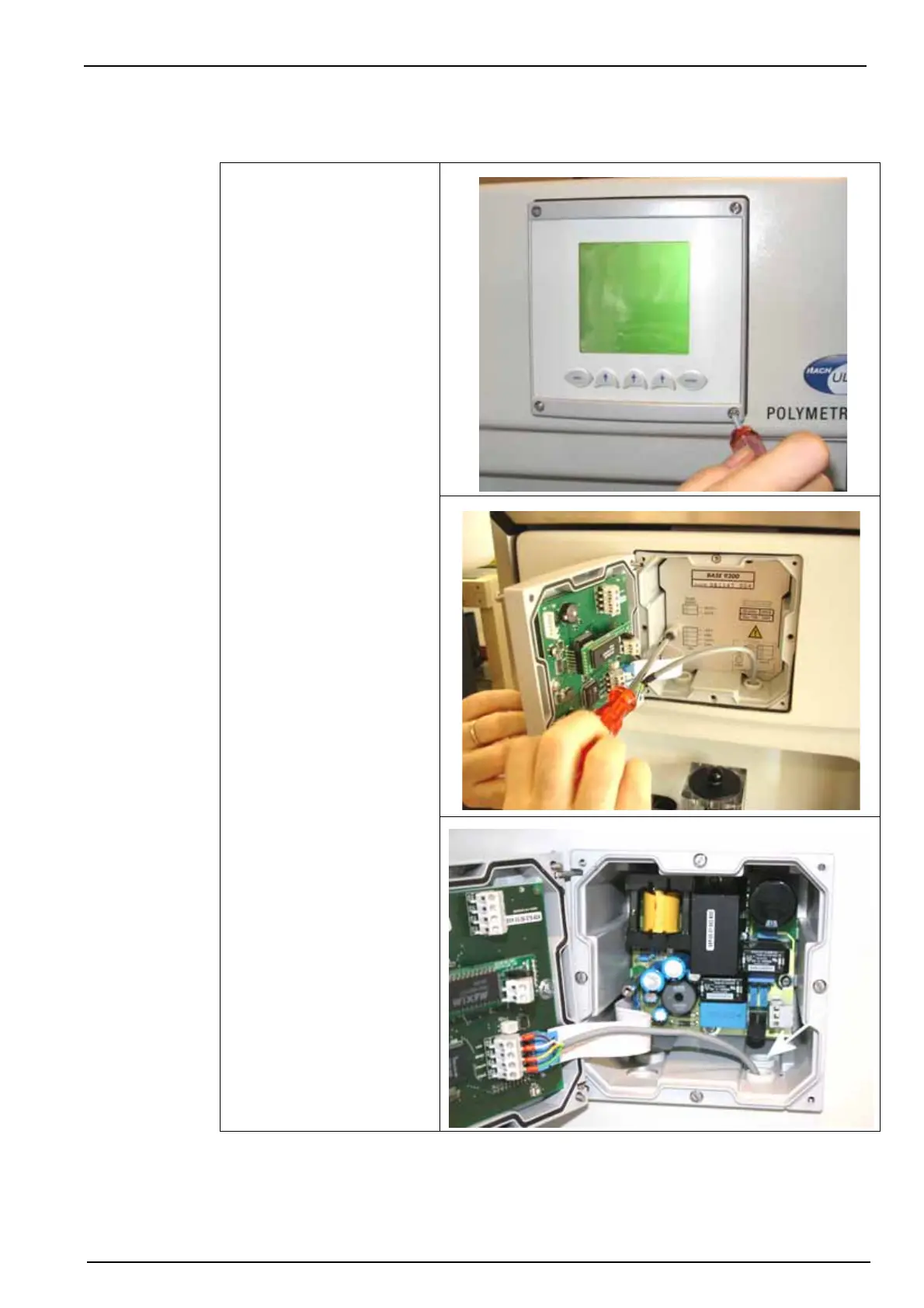

1. Open the transmitter front
door by unscrewing the
four holding screws.
2. Swing open the door (it is
hinged to the left) to
reveal the inside of the
transmitter.
3. Remove the metallic
shielding plate protecting
access to the main board.
4. Once the shielding plate
is removed, the location
of the power cable gland
can be seen (indicated
with the arrow).
