SD700
POWER ELECTRONICS
88
COMMONLY USED CONFIGURATIONS
SPEED
REF
Digital Input 4
Multi-reference-A
Digital Input 5
Multi-reference-M
Digital Input 6
Multi-reference-B
G14.1 = +10.0%
MREF1
0
0
X
G14.2 = +20.0%
MREF2
0
X
0
G14.3 = +30.0%
MREF3
0
X
X
G14.4 = +40.0%
MREF4
X
0
0
G14.5 = +50.0%
MREF5
X
0
X
G14.6 = +60.0%
MREF6
X
X
0
G14.7 = +70.0%
MREF7
X
X
X
Note: 0: Not active and X: Active.

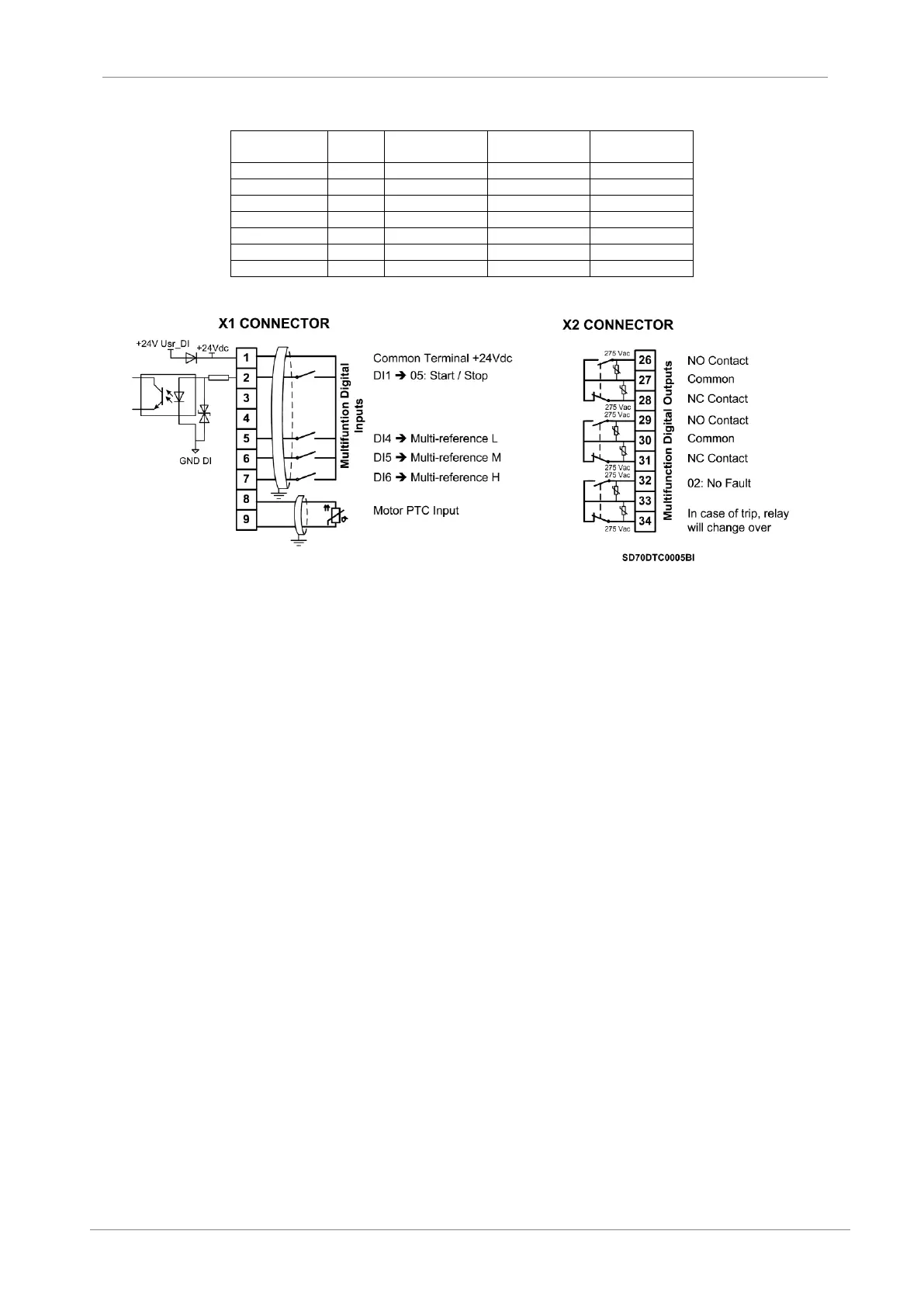

Figure 7.3 Start / Stop commands by terminals and 7 speeds by digital inputs
Note: Use screened cables for the controls and connect the screen to ground.
