X8 | SERVICE MANUAL
INDEX

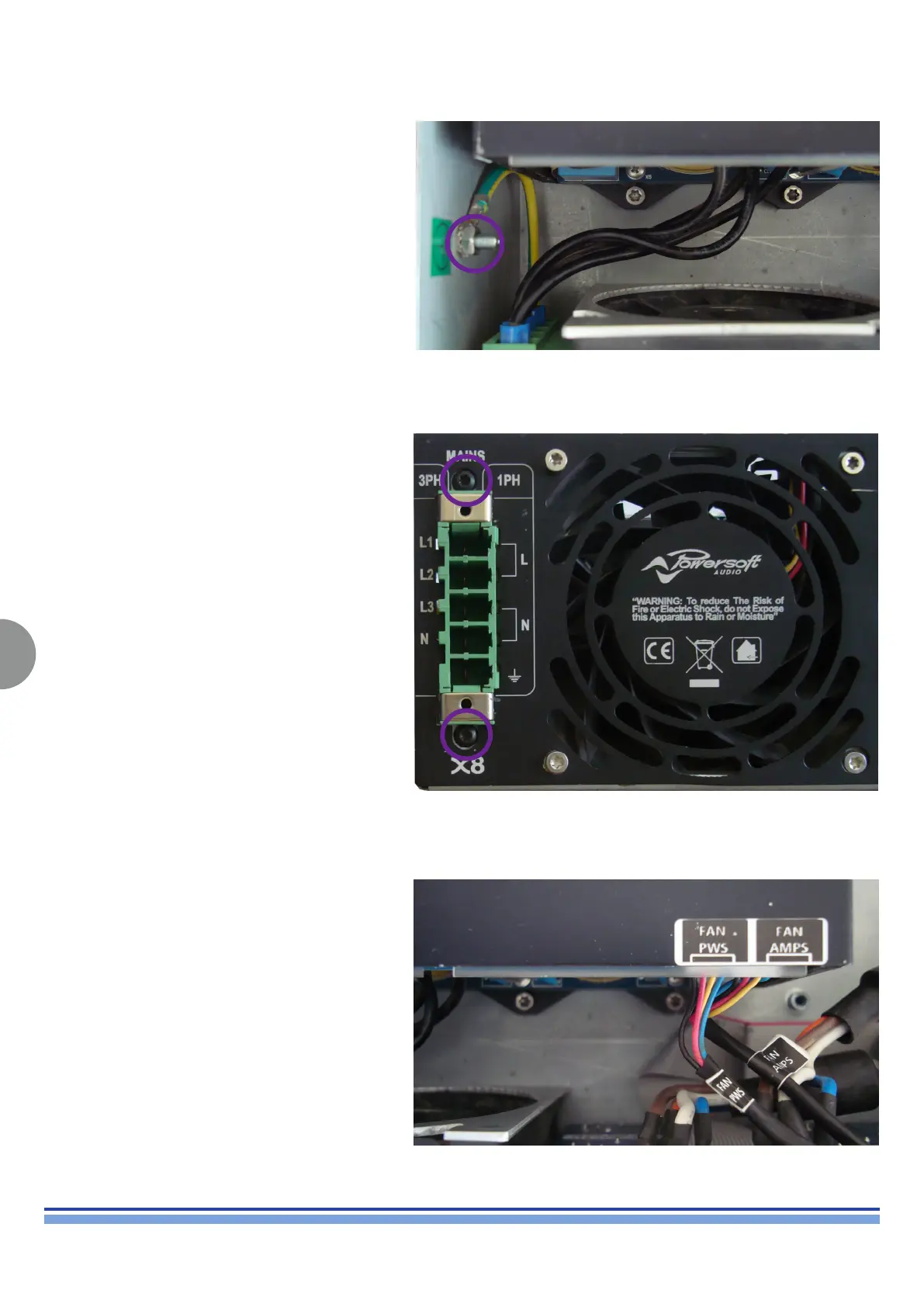

Remove the earth grounding cable’s nut with a M7
socketed screwdriver. (Fig. 12)
(Fig. 12)
(Fig. 13)
(Fig. 14)
Detach the Mains Connector by unscrewing the two T10
Torx Screws. (Fig. 13)
Unplug the FAN AMPS and FAN PWS cables highlighted
on (Fig. 14)

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
