13
X8 | SERVICE MANUAL
INDEX
Color Description Tool
T20 Torx Screw T20 Screwdriver
M7 x 50 mm Pillar M7 Socketed Screwdriver
M5 Bolt M5 Socketed Screwdriver

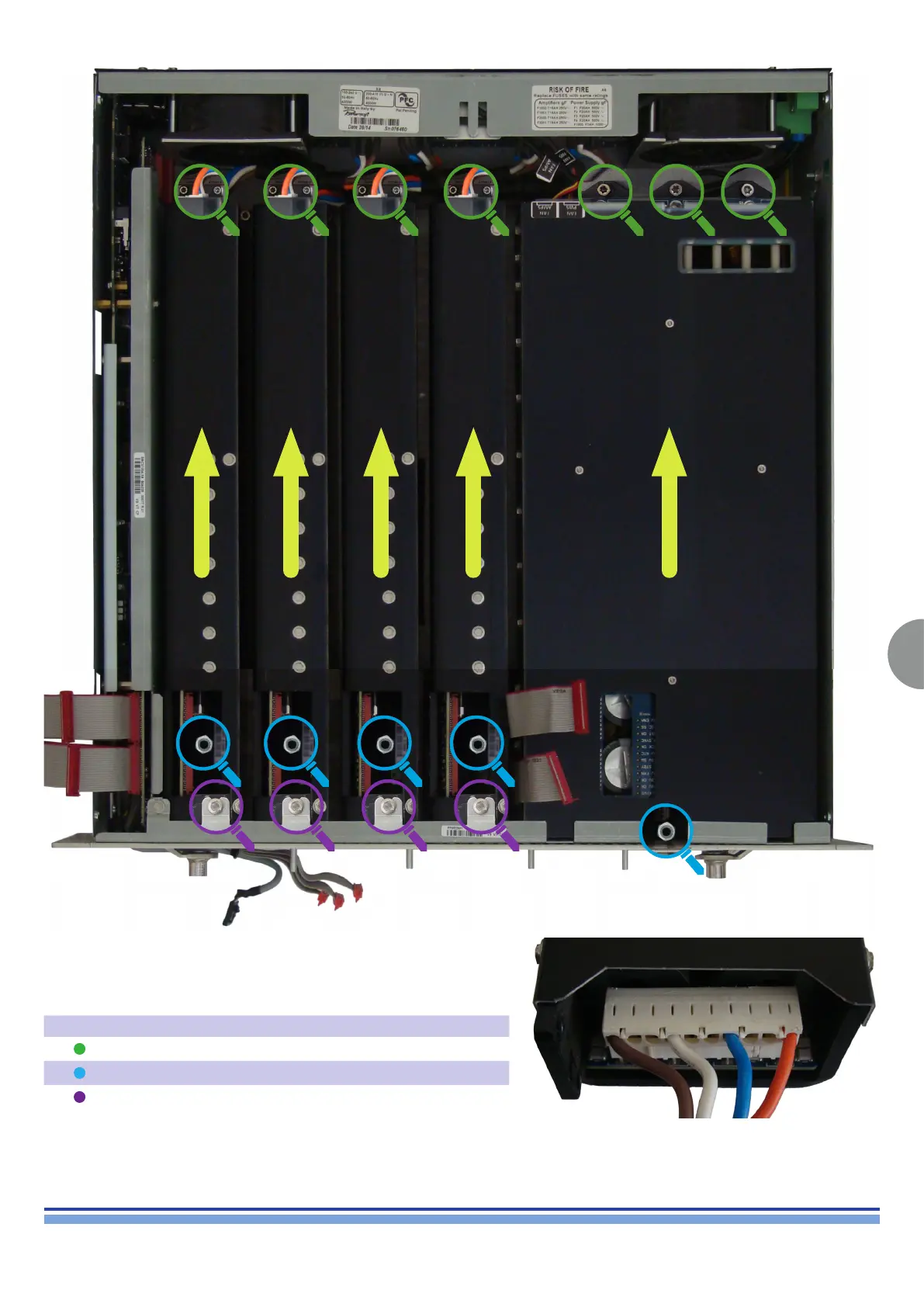

In order to remove the modules, unscrew the highlighted screws and gently
pull the module towards the back side of the chassis.
Carefully lift the modules in order to remove them from the chassis.
Unplug the Module’s Output Connector by gently pulling
upwards on its sides.
To Next Page
